Steps

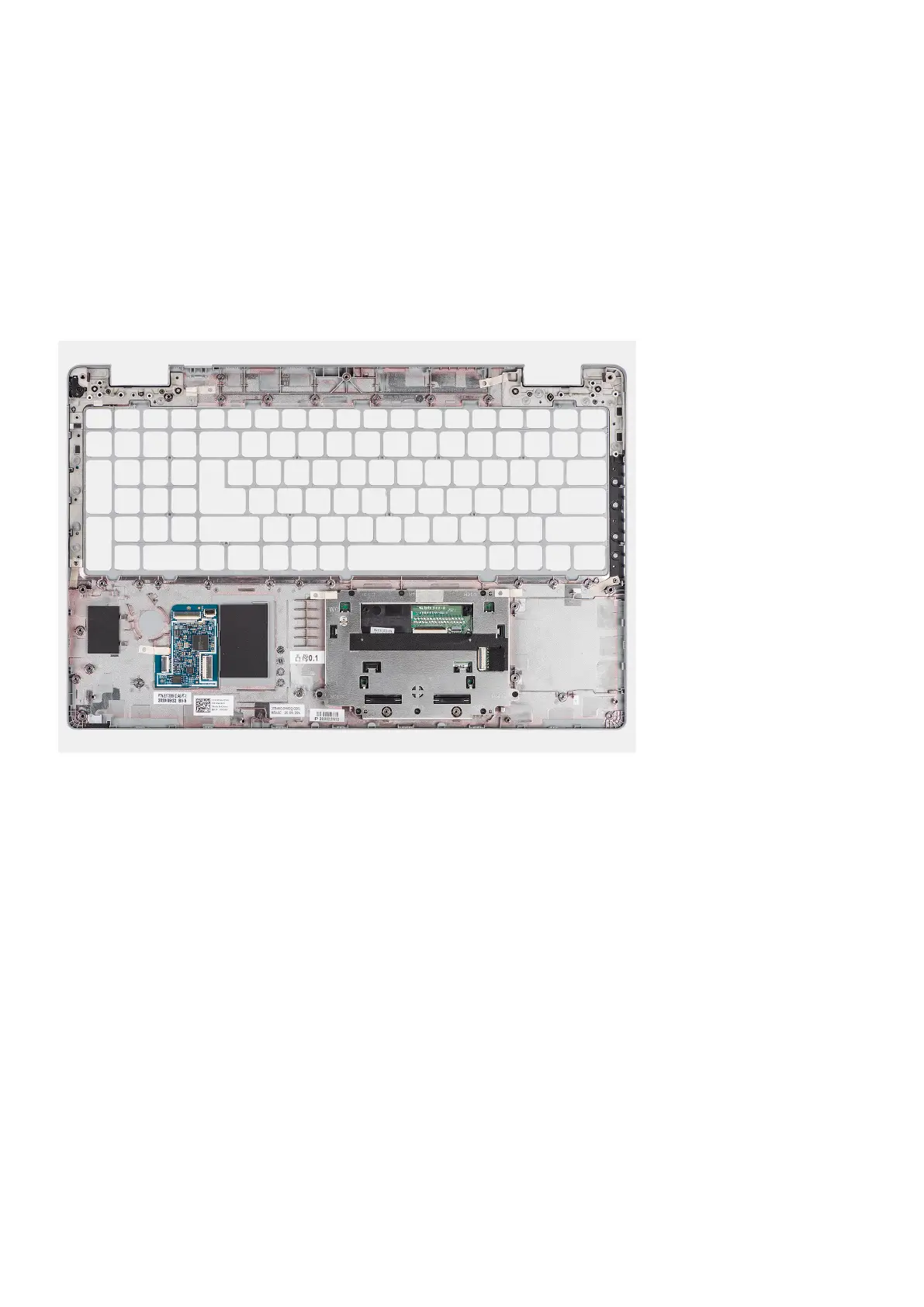

After performing the steps in the pre-requisites, we are left with the palm-rest assembly.
Installing the palm-rest assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the palm-rest assembly and provides a visual representation of the installation procedure.
Steps
1. Place the palm-rest assembly on a flat surface.
2. Remove the dummy SIM card filler for the non-WWAN LTE configuration.
Next steps
1. Install the display assembly.
2. Install the keyboard assembly.
3. Install the smart card reader.
4. Install the LED board.
5. Install the power-button board.
6. Install the system board.
7. Install the assembly inner frame.
8. Install the speakers.
9. Install the heat sink - UMA or discrete based on the system configuration.
10. Install the battery.
11. Install the WWAN card.
12. Install the WLAN card.
13. Install the 2280 solid-state drive or 2230 solid-state drive.
14. Install the memory module.
15. Install the base cover.
94
Removing and installing components
