Steps

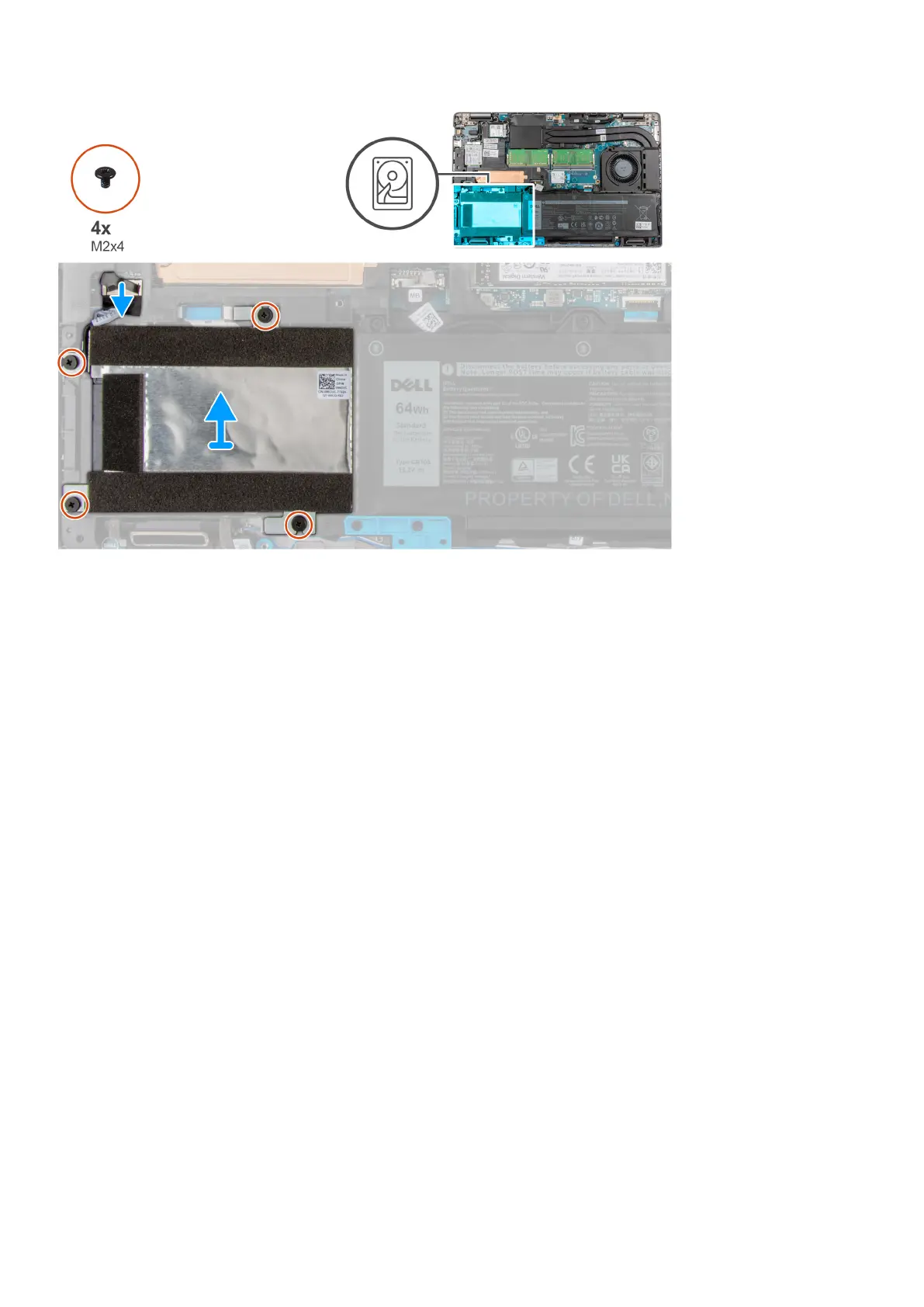

1. Locate the Hard drive on your computer.
2. Disconnect the Hard drive cable from the system board.
3. Remove the four (M2x4) screws that secure the Hard drive to the system board.
4. Remove the Hard drive from the computer.
Installing the Hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the HDD and provides a visual representation of the installation procedure.
Removing and installing components
35
