Steps

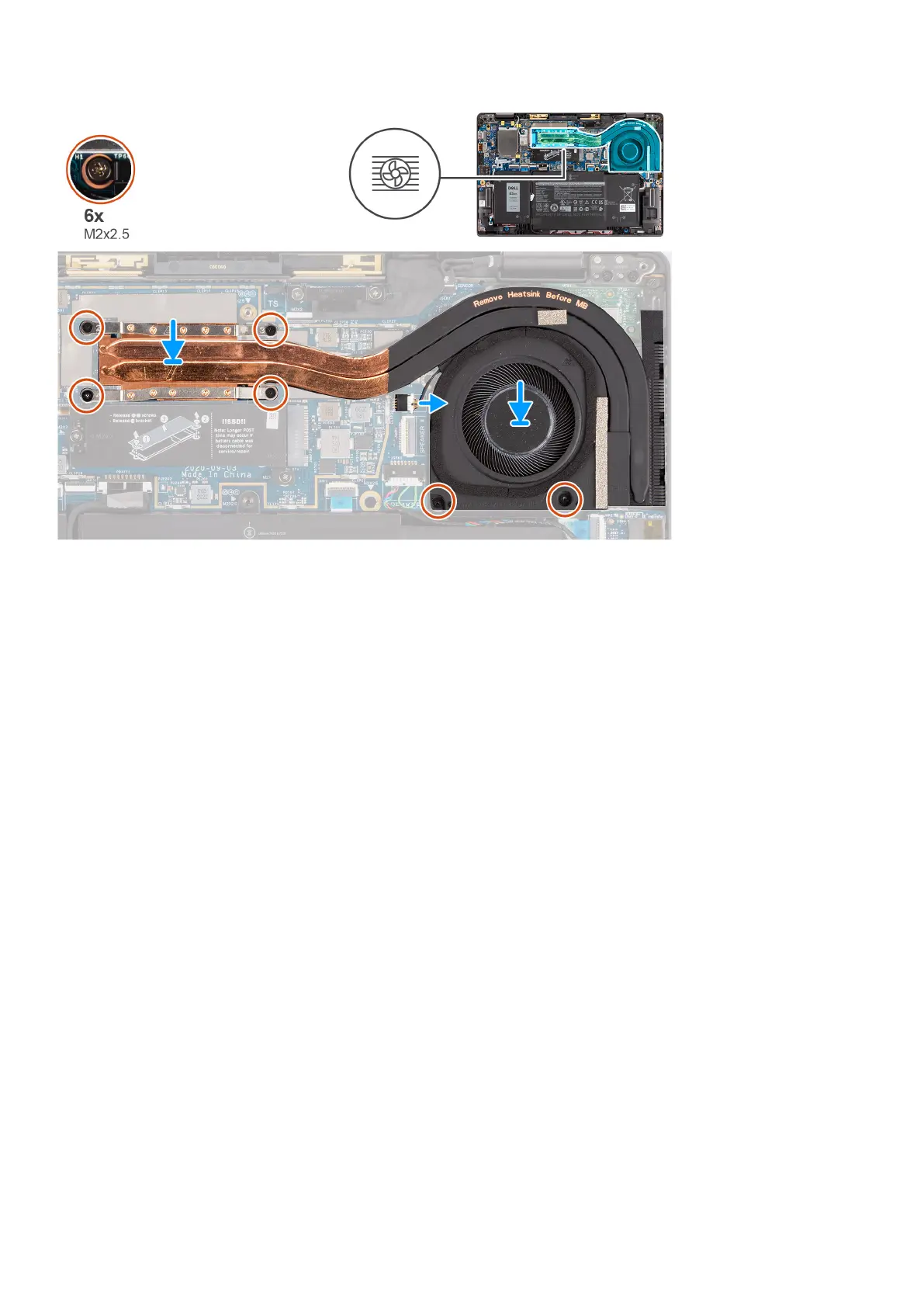

1. Align and place the heatsink assembly into its slot in the computer.
2. Replace the two (M2x2.5) screws on the fan casing and four (M2x2.5) screws (in sequential order, 1->2->3->4) to secure
the heatsink assembly to the computer.
3. Connect the fan cable to the system board.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Follow the procedure in after working inside your computer.
Palmrest antenna module
Removing the palmrest antenna module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
About this task
The following images indicate the location of the palmrest antenna module and provide a visual representation of the removal
procedure.
32
Removing and installing components
