Dell Latitude E5450 - Page 18

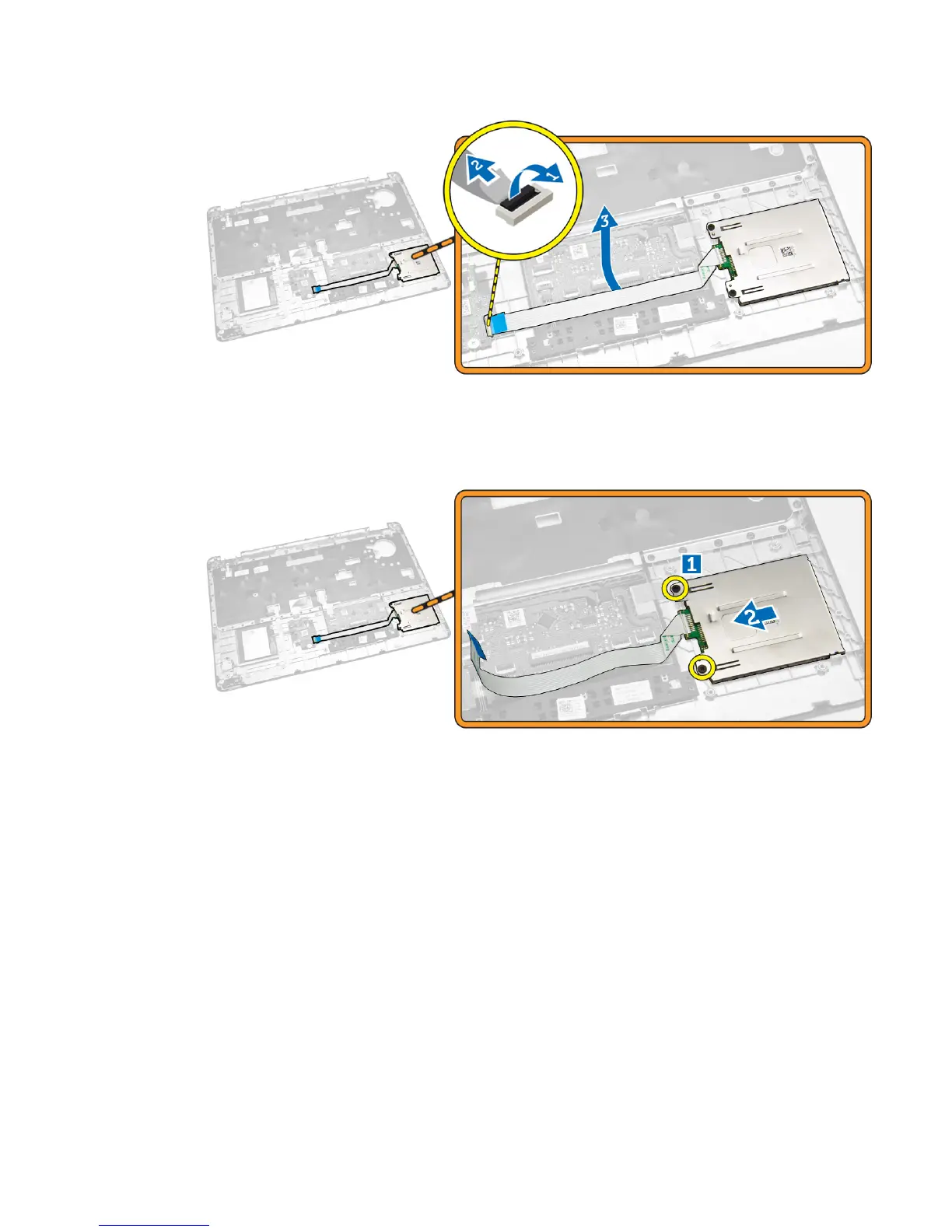

4. Release the SmartCard reader board. To release the SmartCard reader board:
a. Remove the screws that secure the SmartCard-reader board to the palmrest [1].
b. Push the SmartCard-reader board to release it [2].
5. Remove the SmartCard reader board from the palmrest.
18
