Dell Latitude E5450 - Installing the Palmrest; Removing the Smartcard Reader Board

Installing the Palmrest

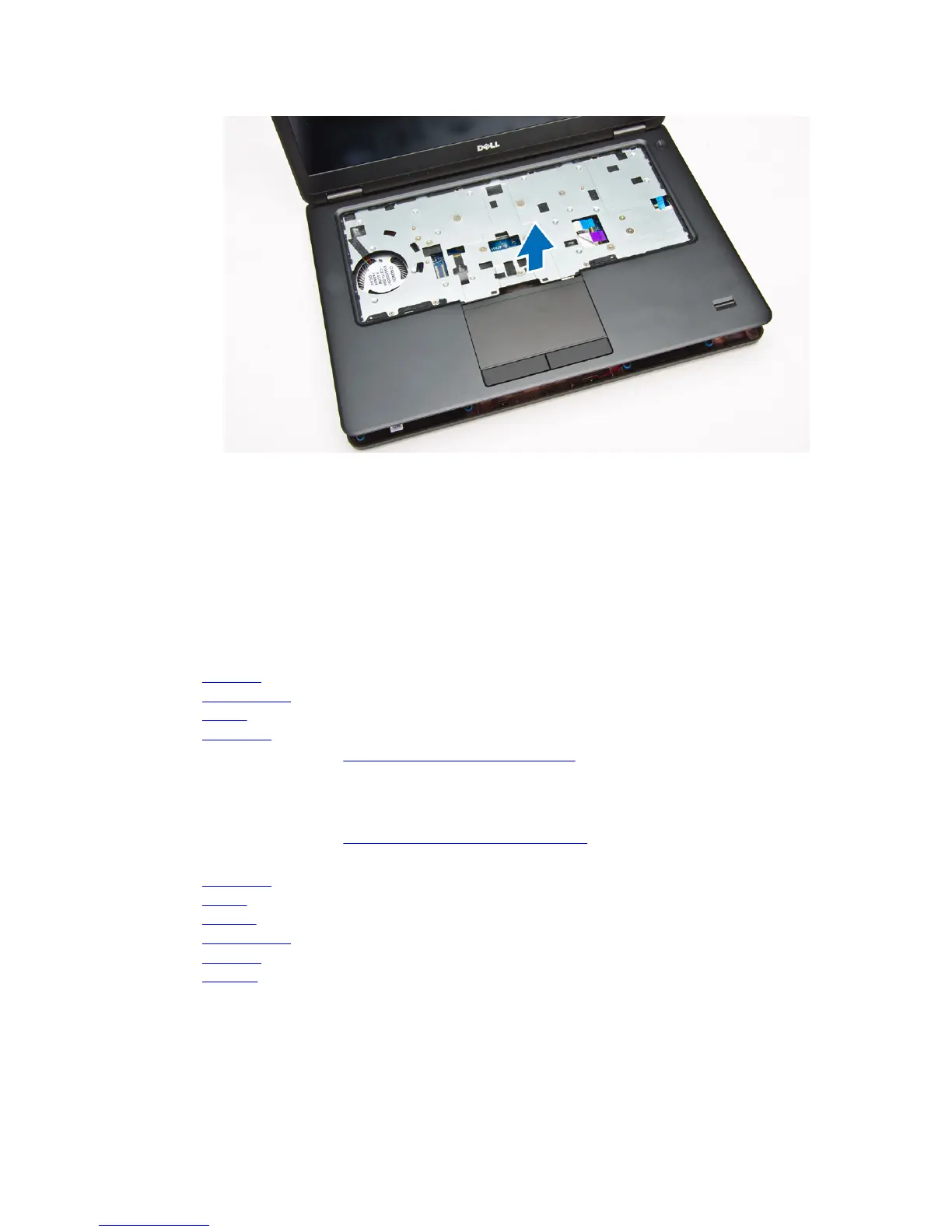

1. Place the palmrest on the computer.
2. Connect the following cables to their connectors on the system board:
a. LED board
b. USH board
c. touchpad board
3. Tighten the screws to secure the palmrest to the computer.
4. Install the:
a. keyboard
b. keyboard trim
c. battery
d. base cover
5. Follow the procedures in After Working Inside Your Computer
Removing the SmartCard Reader Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery
c. memory
d. keyboard trim
e. keyboard
f. palmrest
3. Perform the following steps:
a. Disconnect the SmartCard reader board cable from the USH board [1] [2].
b. Peel the cable to release from the adhesive [3].
