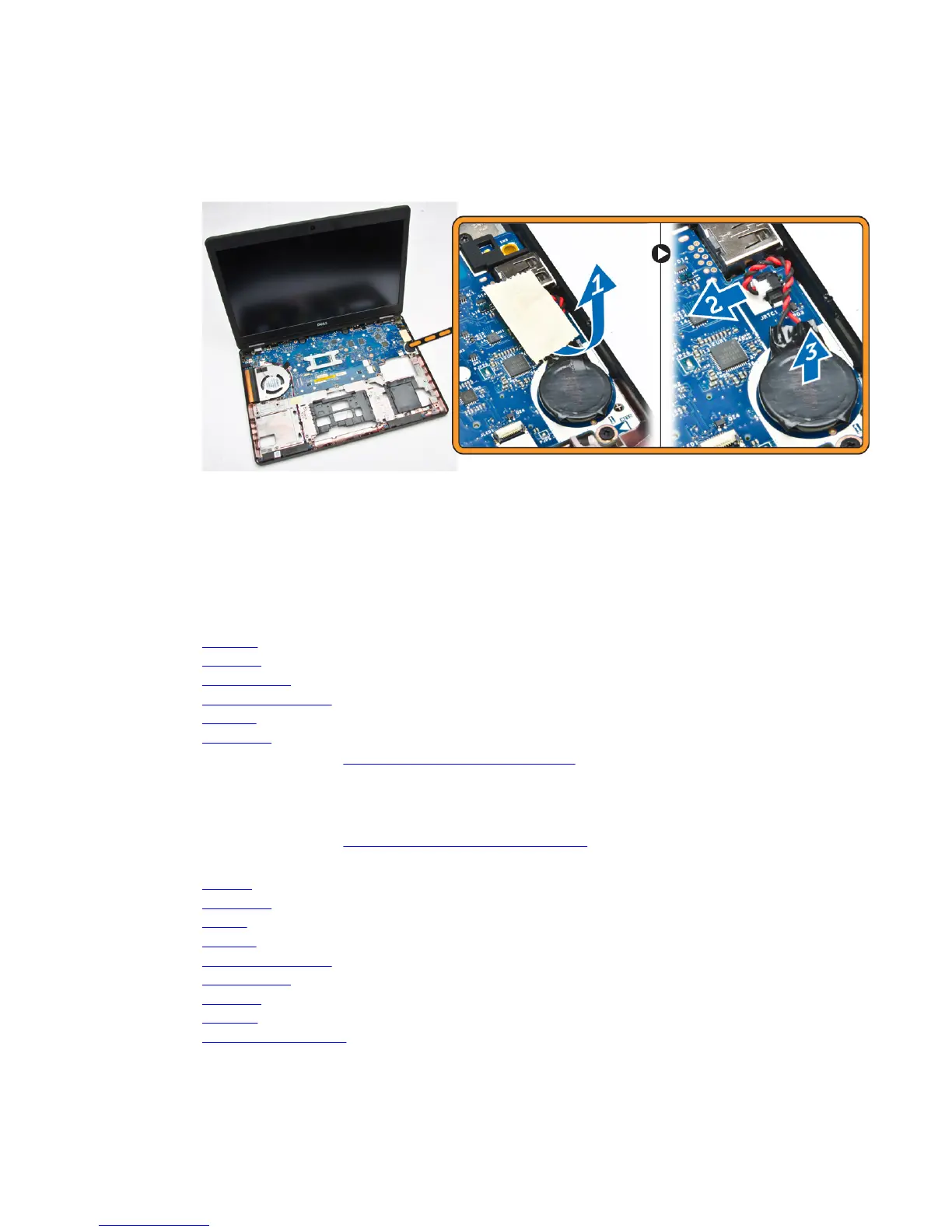

3. Perform the following steps to remove the coin-cell battery from the computer:
a. Peel the adhesive tape to access the coin-cell cable [1].
b. Disconnect the coin-cell cable from its connector on the system board [2].
c. Pry the coin-cell battery to remove it from the system board [3].
Installing the Coin-cell Battery
1. Insert the coin-cell battery into its place on the system board.
2. Connect the coin-cell battery cable to its connector on the system board.
3. Stick the adhesive tape to secure the coin-cell battery cable.
4. Install the:
a. palmrest
b. keyboard
c. keyboard trim
d. hard-drive assembly
e. memory
f. base cover
5. Follow the procedures in After Working Inside Your Computer.
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. SD card
b. base cover
c. battery
d. memory
e. hard-drive assembly
f. keyboard trim
g. keyboard
h. palmrest
i. display-hinge brackets
36
