Removing the Input/Output (I/O) Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) battery
c) base cover
d) keyboard trim
e) keyboard
f) optical drive
g) primary and secondary hard drive
h) palmrest

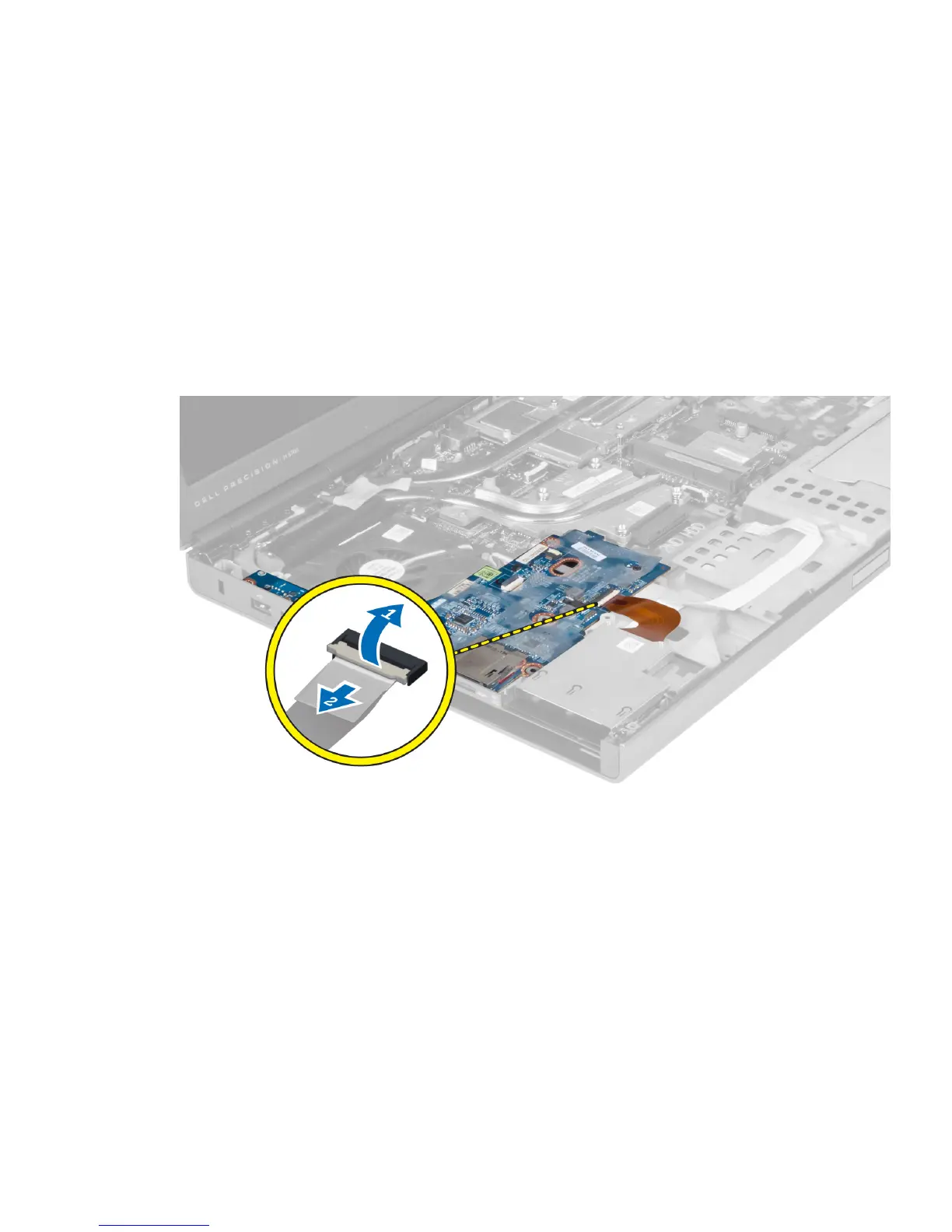

3. Disconnect the ExpressCard module connector from the I/O board.
4. Remove the screw that secures the I/O board to the computer. Lift the right edge of the I/O board upwards to
disengage the connector and remove it from computer.
47

Dell M6700 P22F Specifications

General

Model	Dell Precision M6700
CPU	Up to Intel Core i7-3940XM Extreme Edition
Processor	Intel Core i7
Display	17.3-inch, Full HD (1920x1080)
Graphics	NVIDIA Quadro K5000M or AMD FirePro M6000
RAM	Up to 32GB DDR3
Hard Drive	Up to 1TB HDD or 512GB SSD
Storage	Multiple options including HDD, SSD
Operating System	Windows 7 Professional or Windows 8 Pro
Battery	9-cell (97Wh)
Ports	USB 3.0, HDMI, DisplayPort, eSATA
Wireless	Bluetooth 4.0
