Dell M6700 P22F - System Board Replacement

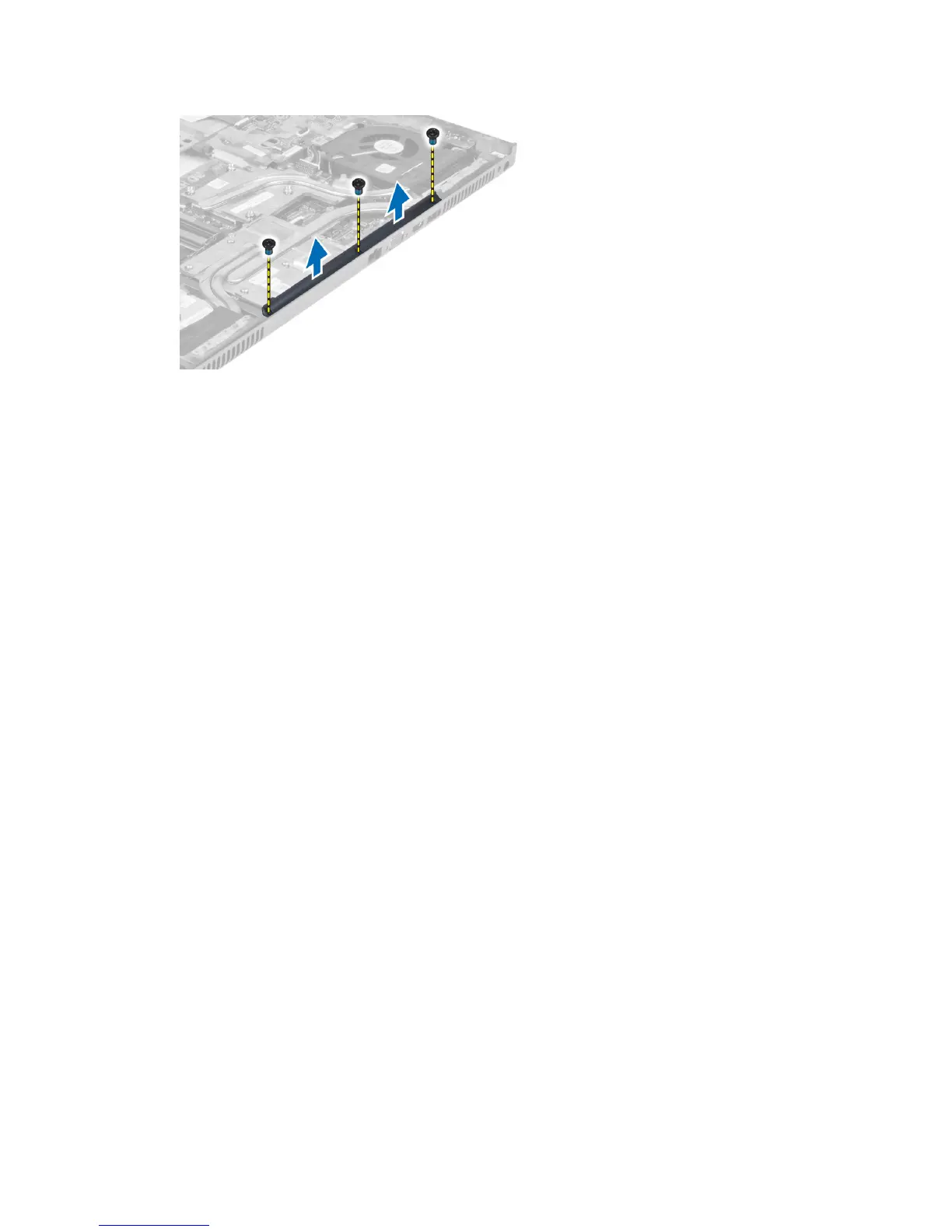

Installing the Hinge Cover
1. Place the hinge cover in its position on the computer.
2. Tighten the screws to secure the hinge cover to the computer.
3. Install the:
a) display assembly
b) palmrest
c) primary and secondary hard drive
d) optical drive
e) keyboard
f) keyboard trim
g) base cover
h) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) keyboard trim
f) keyboard
g) optical drive
h) primary and secondary hard drive
i) primary memory
j) secondary memory
k) video-card fan
l) palmrest
m) heatsink
n) processor
o) video-card heatsink.
