Dell Networking S6000 System User Manual

Installation 19
Two-Post Center-Mount Configuration:
1 Slide the plunger bracket rearward until it clicks into place and secure the
bracket to the front post flange with two user-supplied screws. Refer
to Figure 4-3, item 1.

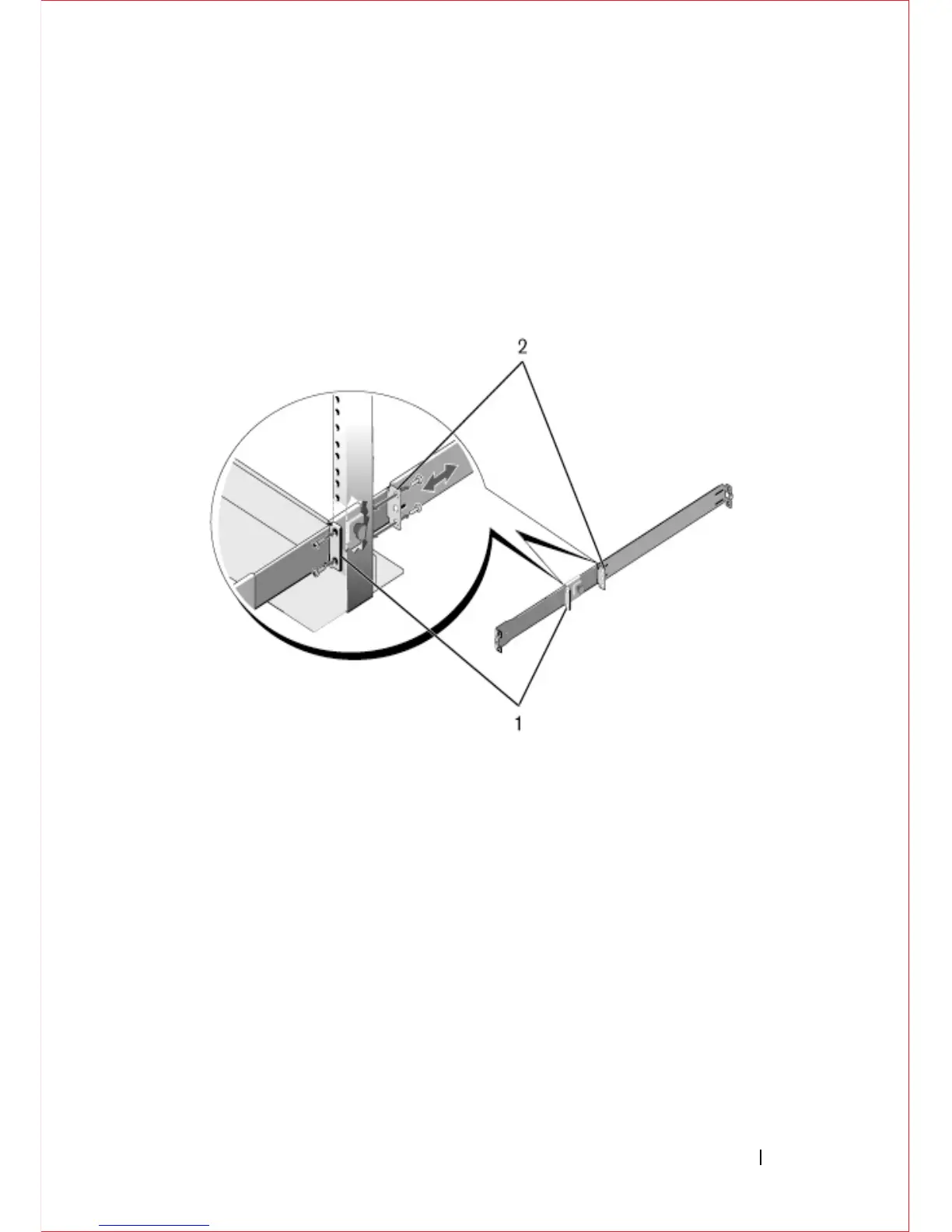

Figure 4-3. Two-Post Center-Mount Configuration
2 Slide the back bracket towards the post and secure it to the post flange with
two user-supplied screws. Refer to Figure 4-3, item 2.
3 Repeat this procedure for the second rail.
Four-Post Threaded Configuration:
1 For this configuration, remove the flange ear castings from each end of the
ReadyRails assemblies. Use a Torx driver to remove the two screws from
each flange ear and remove each casting. Refer to Figure 4-4, item 1. Retain
the castings for future rack requirements.
2 For each rail, attach the front and rear flanges to the post flanges with two
user-supplied screws at each end. Refer to Figure 4-4, item 2.
