About this task

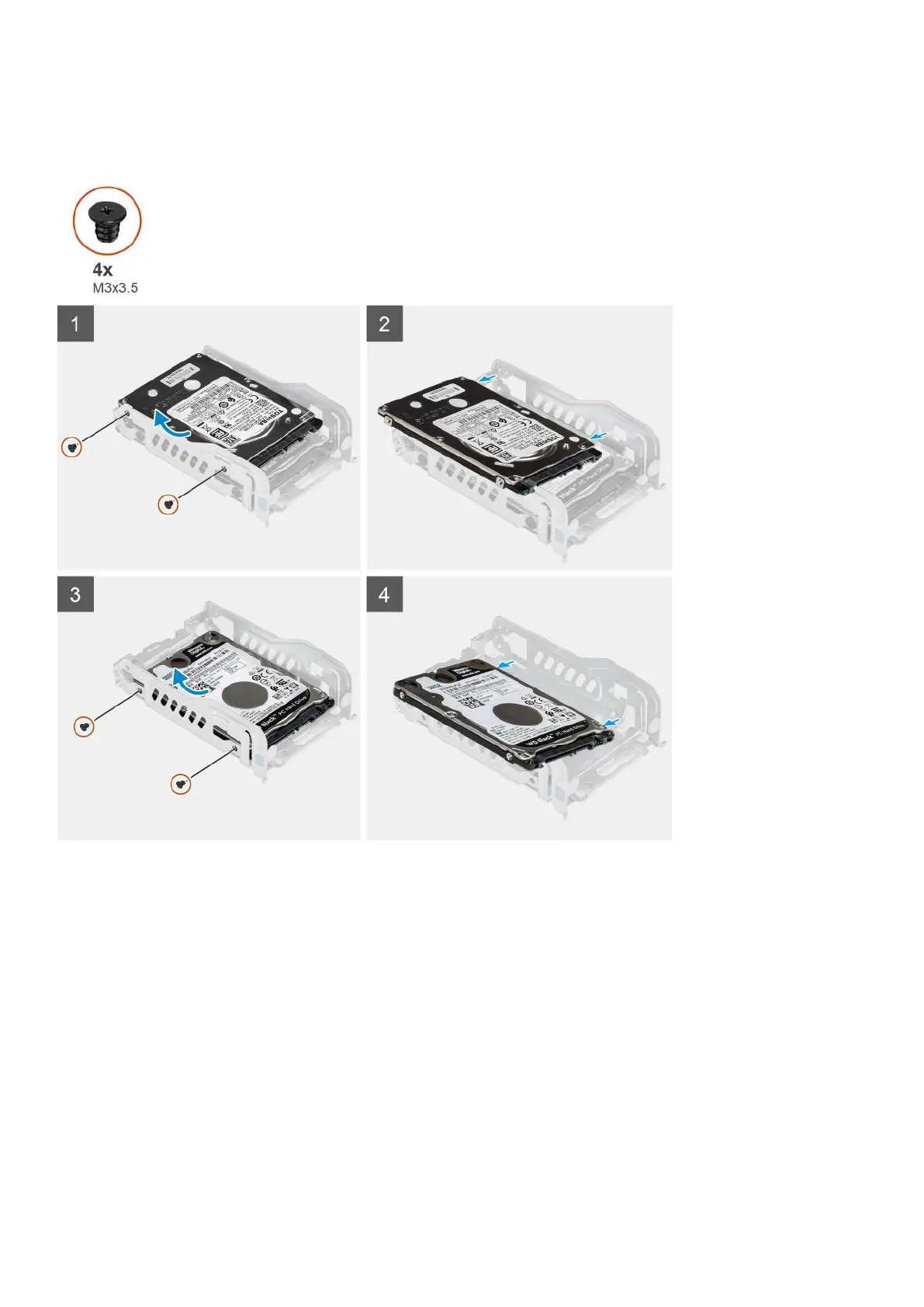

The following images indicate the location of the 2.5-inch hard-disk drive bracket and provides a visual representation of the
removal procedure.
Steps
1. Remove the two (M3x3.5) screws that secure the first hard-disk drive to the hard-drive metal bracket.
2. Slide and lift the hard drive from the hard-drive metal bracket.
3. Remove the two (M3x3.5) screws that secure the second hard drive to the hard-disk drive metal bracket.
4. Slide and lift the second hard-disk drive from the hard-disk drive metal bracket.
Installing the 2.5-inch hard-disk drive bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 2.5-inch hard-disk drive bracket and provides a visual representation of the
installation procedure.
