About this task

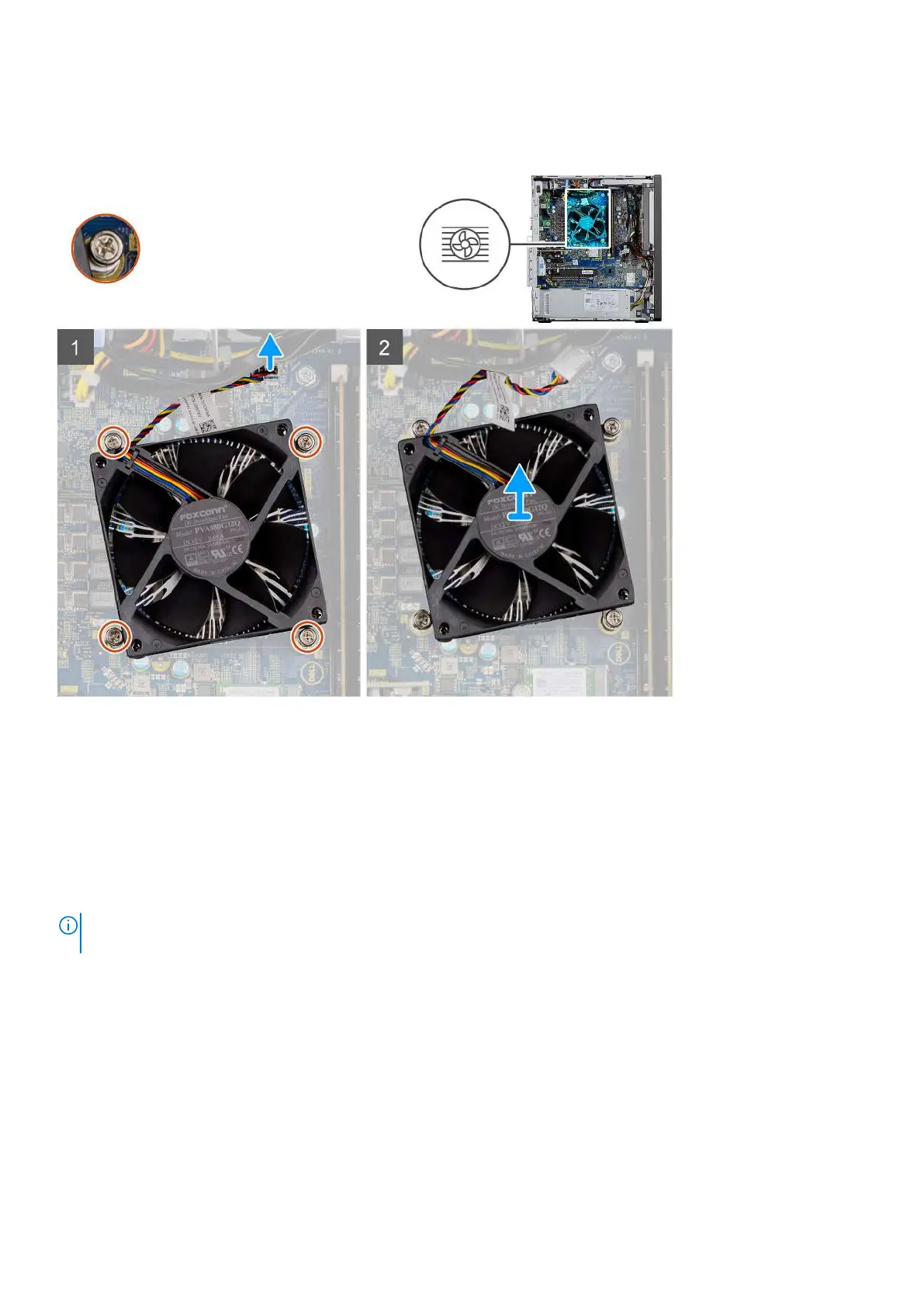

The following images indicate the location of the processor fan and heat-sink and provide a visual representation of the removal
procedure.
Steps
1. Disconnect the processor fan cable from the connector on the system board.
2. Loosen the four captive screws that secure the processor fan and heat-sink assembly to the system board.
3. Lift the processor fan and heat-sink assembly off the system board.
Installing the processor fan and heat-sink assembly
Prerequisites
NOTE:
If either the processor or the heat sink is replaced, use the thermal grease provided in the kit to ensure that thermal
conductivity is achieved.
About this task
The following image indicates the location of the processor fan and heat-sink assembly and provides a visual representation of
the installation procedure.
Disassembly and reassembly
37
