Left

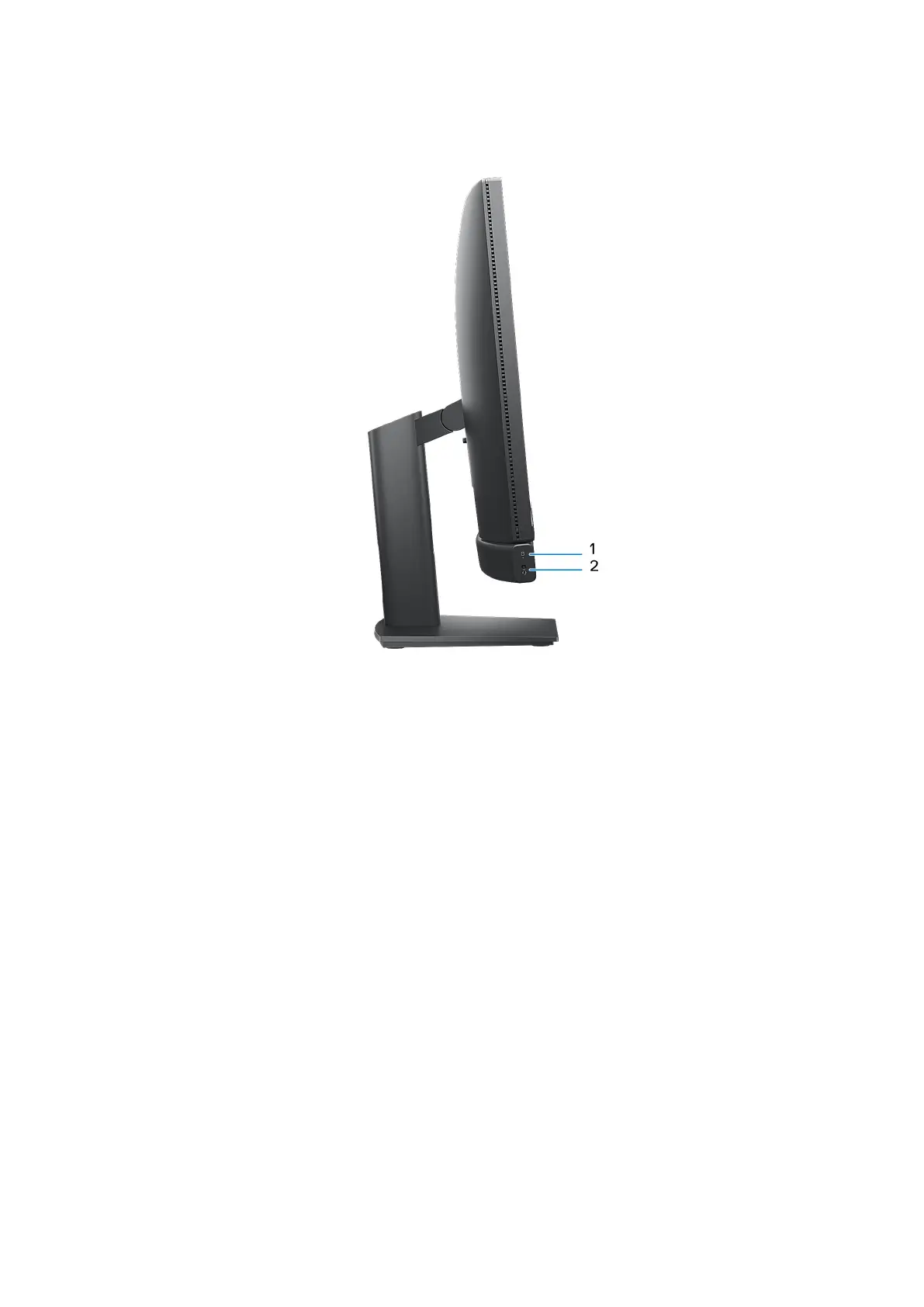

Figure 2. Left view of OptiPlex All-in-One 7420
1. Storage drive activity light
The activity light turns on when the computer reads from or writes to storage drives.
2. Universal audio port
Connect headphones or a headset (headphone and microphone combo).
Views of OptiPlex All-in-One 7420
7
