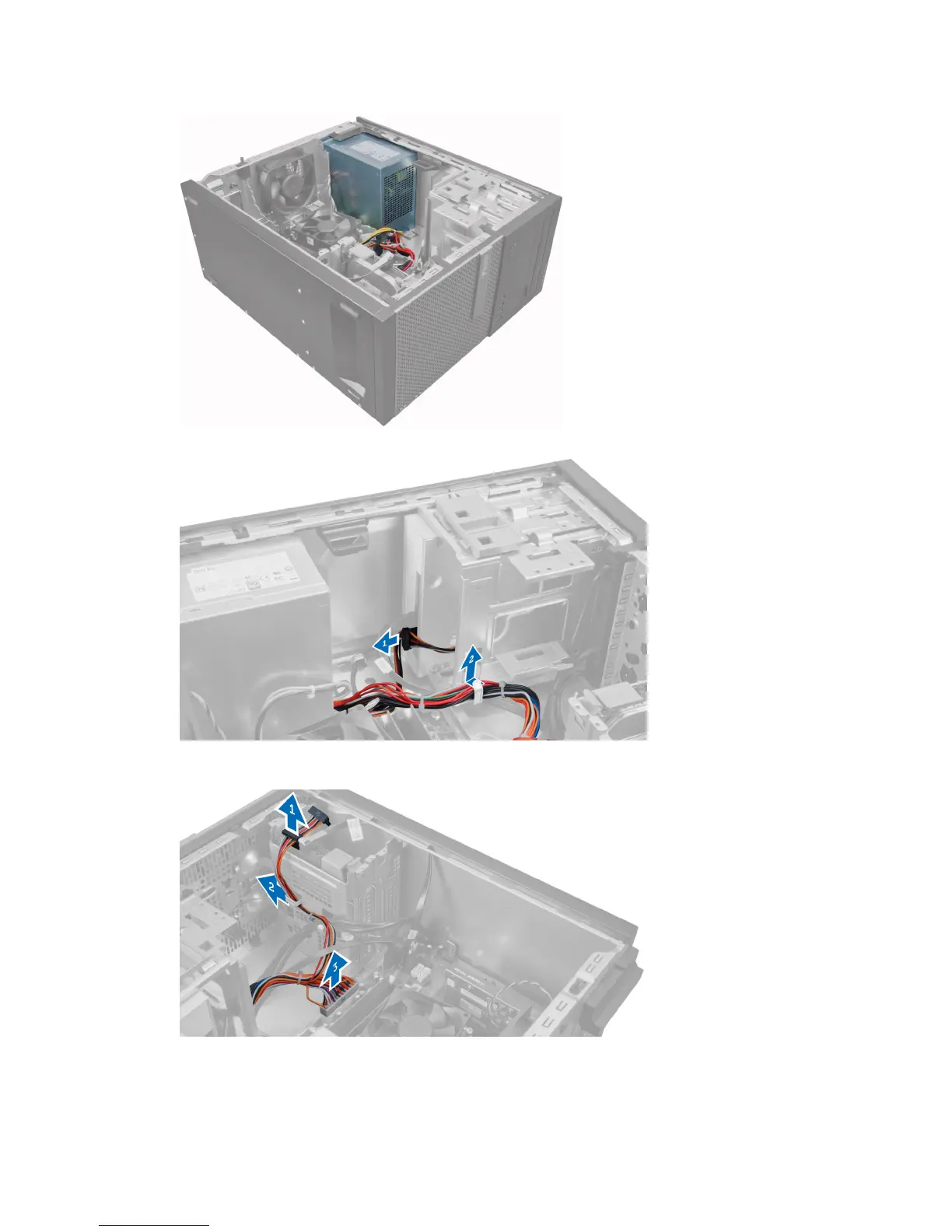

3. Release and disconnect the power cable from the optical drive(s).
4. Disconnect the power cable from the hard drive(s) and release it from the clip. Disconnect the 24–pin cable from
the system board.
5. Disconnect the 4-pin power cable from the system board.
