Dell OptiPlex 9010 Mini-Tower - Intrusion Switch Procedures

Removing the Intrusion Switch
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover.

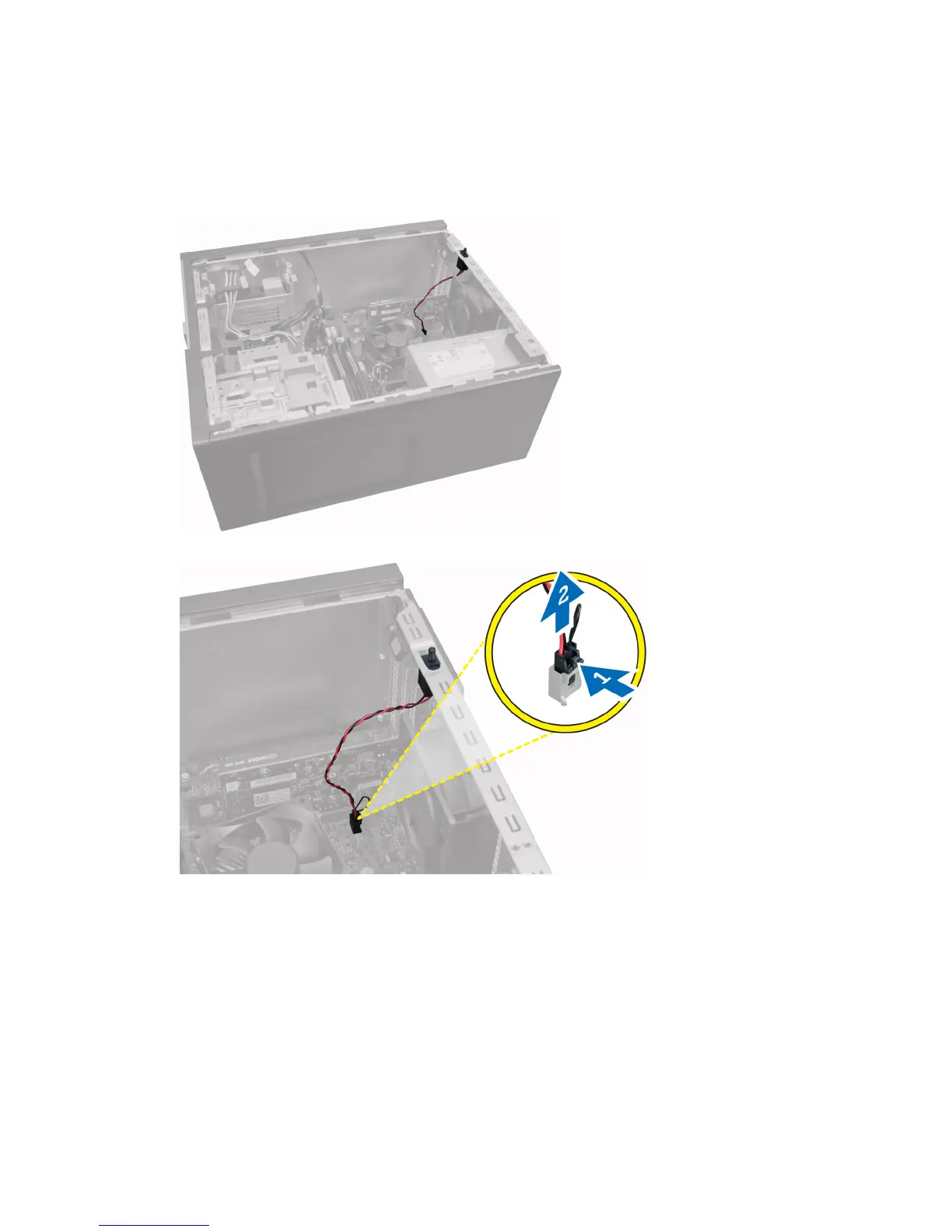

3. Press the clip inwards to release and gently pull the intrusion cable from system board.
4. Slide the intrusion switch toward the bottom of the chassis and remove it from the computer.
