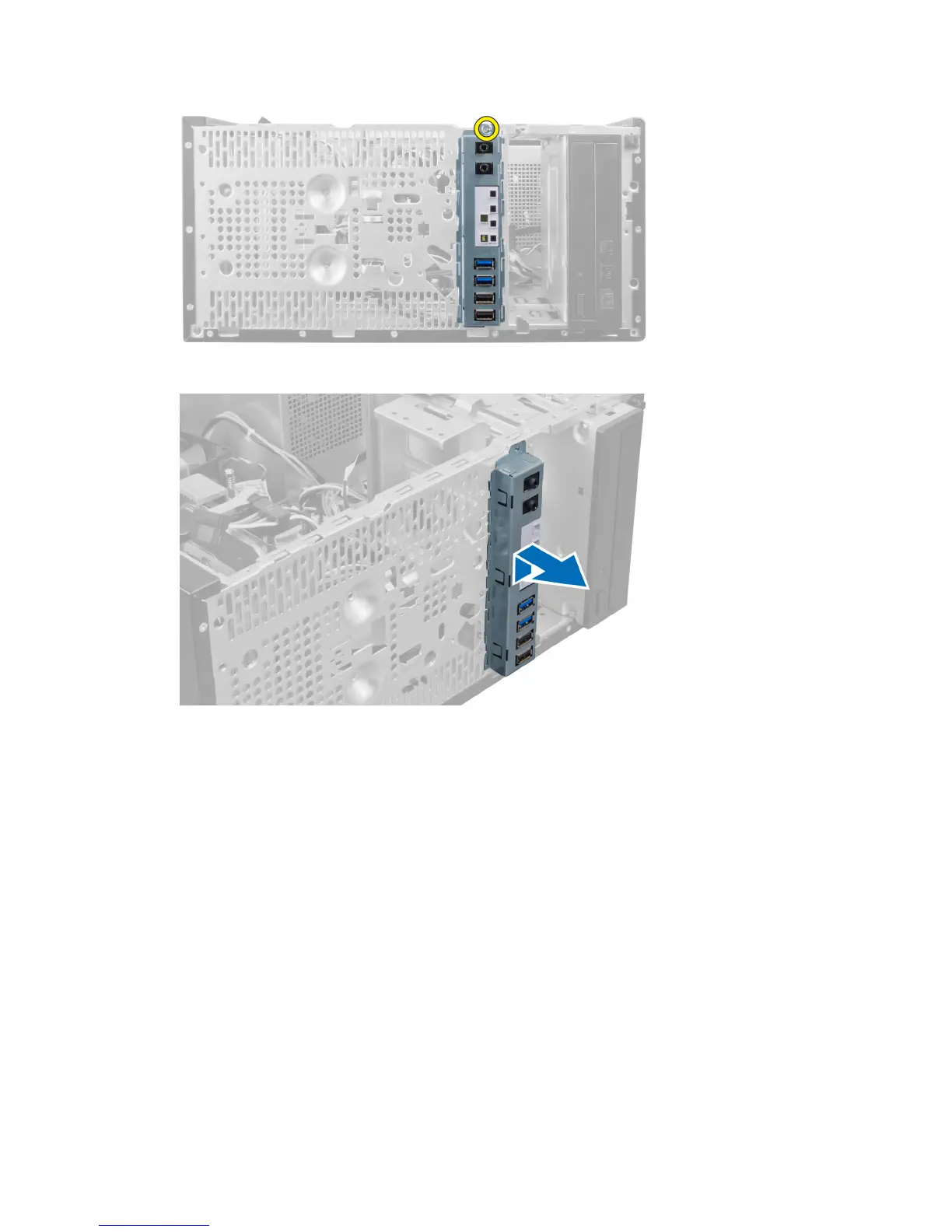

7. Slide the I/O panel towards the left of the computer to release it and pull the I/O panel along with its cable out of the
computer.
Installing the Input/Output Panel
1. Insert the I/O panel into the slot on the chassis front.
2. Slide the I/O panel towards the right of the computer to secure to the chassis.
3. Use a Phillips screwdriver to tighten the single screw securing the I/O panel to the chassis.
4. Thread the I/O panel and FlyWire cables into the chassis clip.
5. Connect the I/O panel and FlyWire cables to the system board.
6. Install the front panel.
7. Install the cover.
8. Follow the procedures in
After Working Inside Your Computer
.
Removing the System Board
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) cover
