Dell OptiPlex 9010 Mini-Tower - Page 28

b) front bezel
c) optical drive

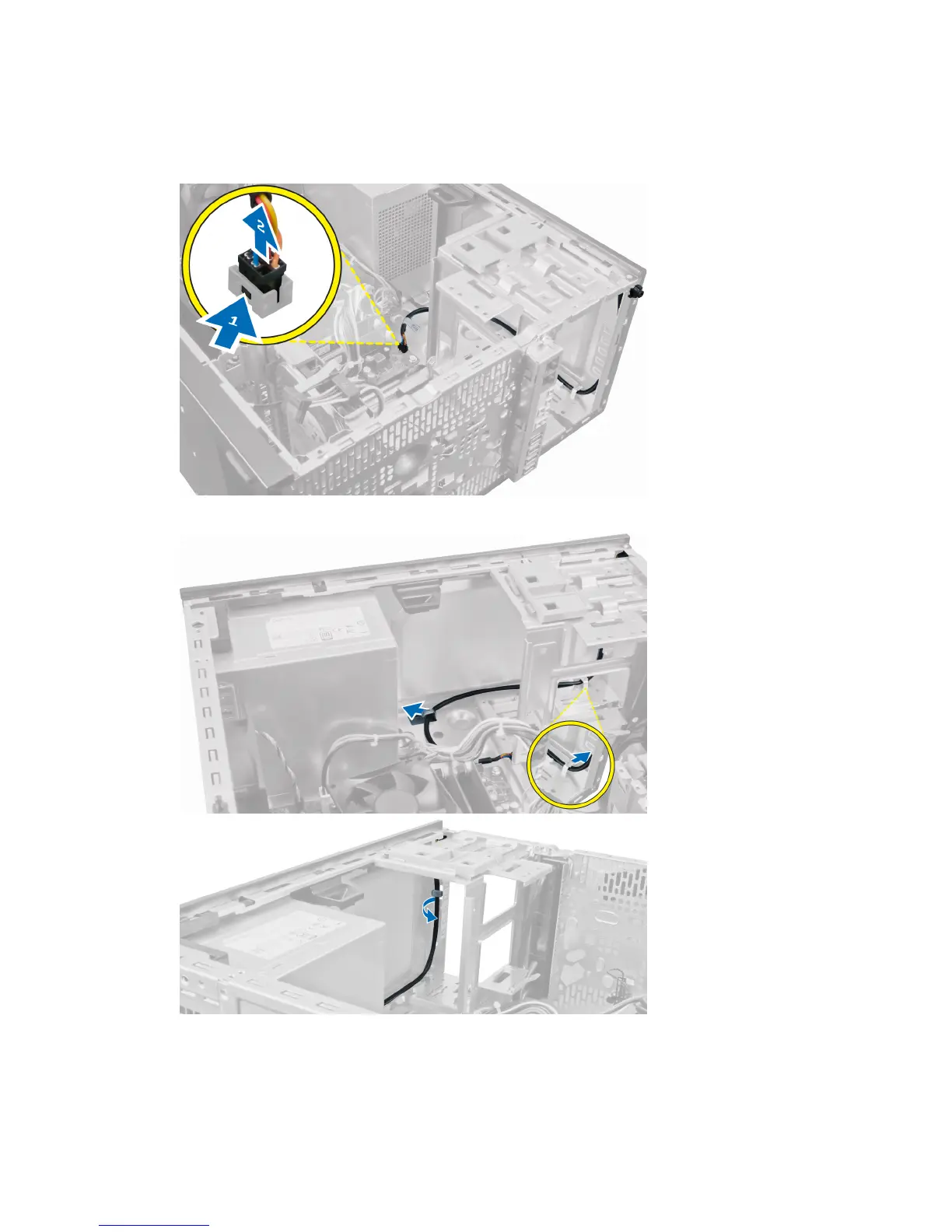

3. Press in to release and remove the power-switch cable from the system board.
4. Release the power-switch cable from the chassis clips.
5. Press the clips on both side of the power switch to release it from the chassis and pull the power switch out of the
computer.
28
