Dell OptiPlex 990 - Optical Drive Service; Removing the Optical Drive

Optical Drive 4
Removing the Optical Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .
3. Remove the front bezel .
4. Remove the drive cage .

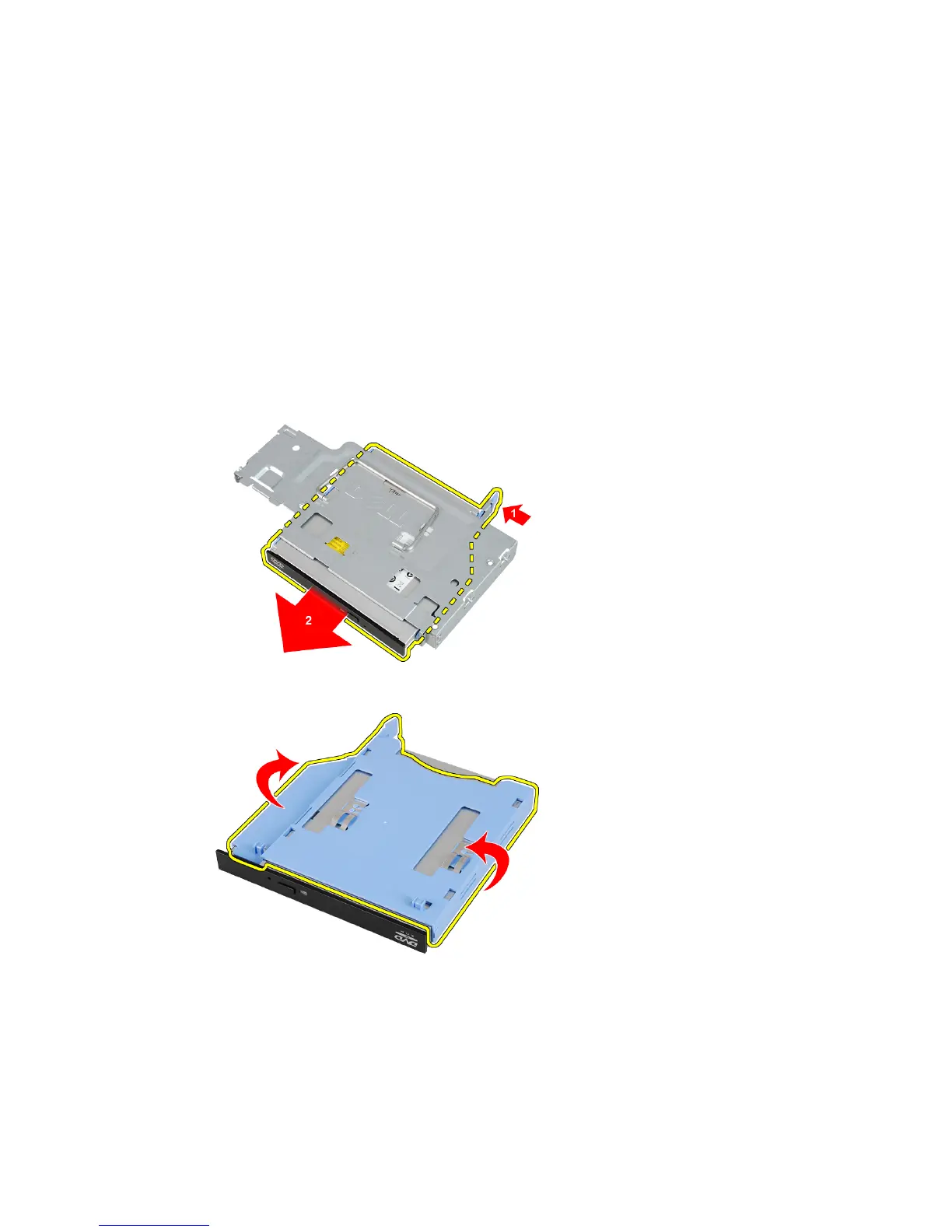

5. Release the retention clip and remove the optical drive from its cage.
6. Remove the optical drive bracket.
