Dell OptiPlex 990 - Hard Drive Service; Removing the Hard Drive

Hard Drive 5
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .
3. Remove the front bezel .
4. Remove the drive cage .
5. Remove the hard-drive cage from the compartment.

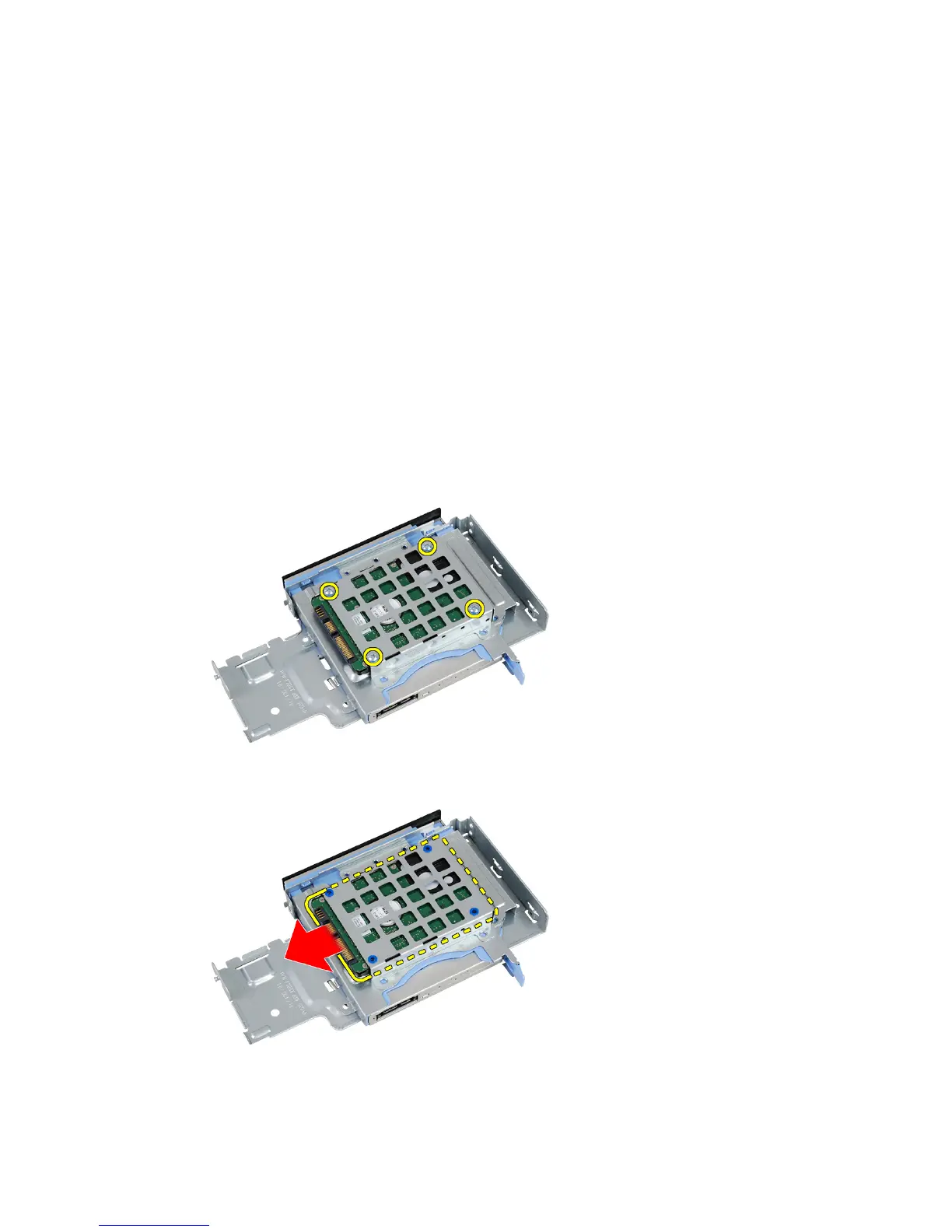

6. Remove the screws that secure the hard drive to the drive cage.
7. Slide the hard drive to release it from the drive cage.
