9. Remove the Input/Output bracket.

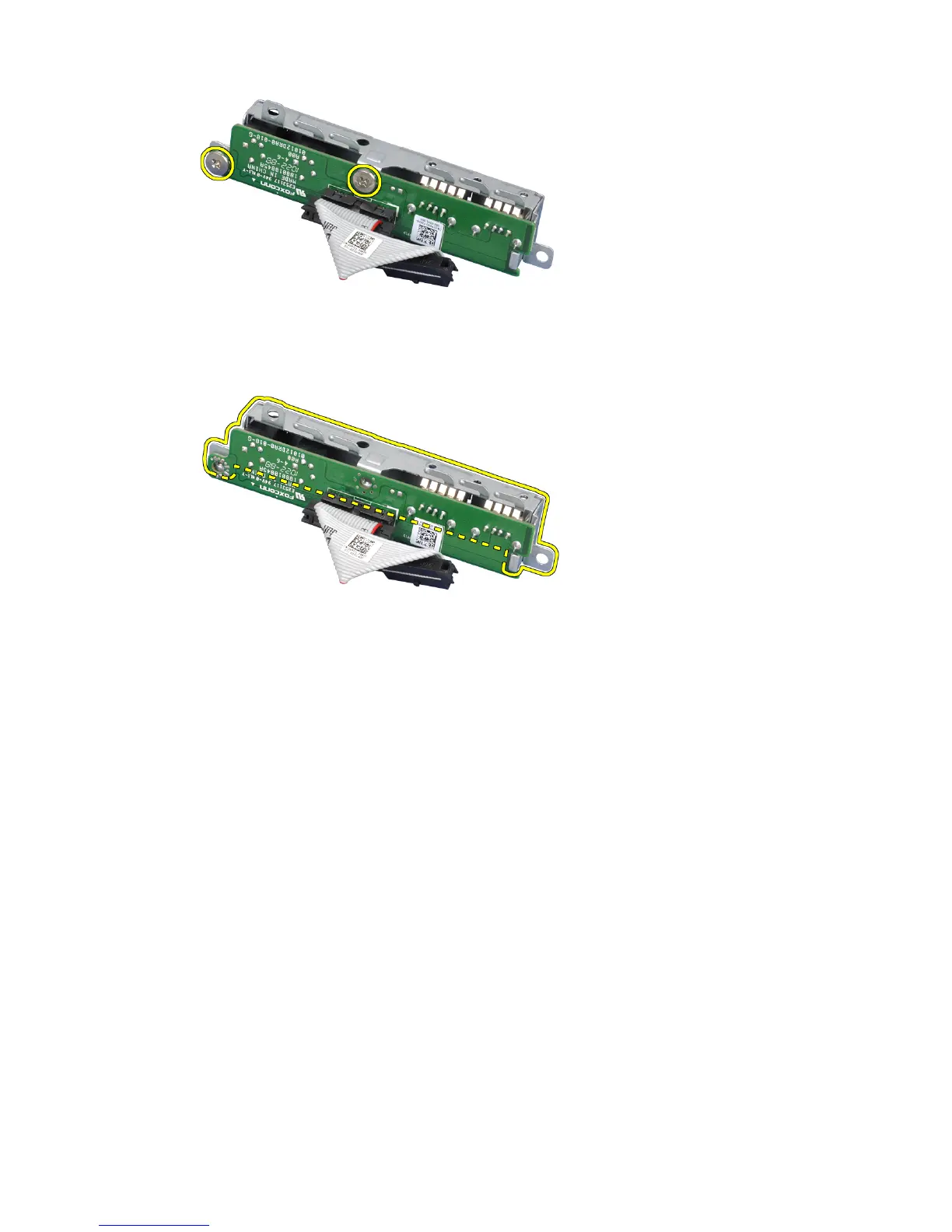

Installing the Input/Output Board
1. Align the Input/Output board with the Input/Output bracket and tighten the
screws securing the Input/Output board.
2. Insert the Input/Output bracket into the slot on the chassis front.
3. Tighten the screws to secure the Input/Output bracket.
4. Connect the Input/Output board data cable to the system board.
5. Install the
drive cage
.
6. Install the
front bezel
.
7. Install the
cover
.
8. Follow the procedures in
After Working Inside Your Computer
.
