Dell OptiPlex 990 - Wireless Module Service; Removing the Wireless Module

Wireless Module 17

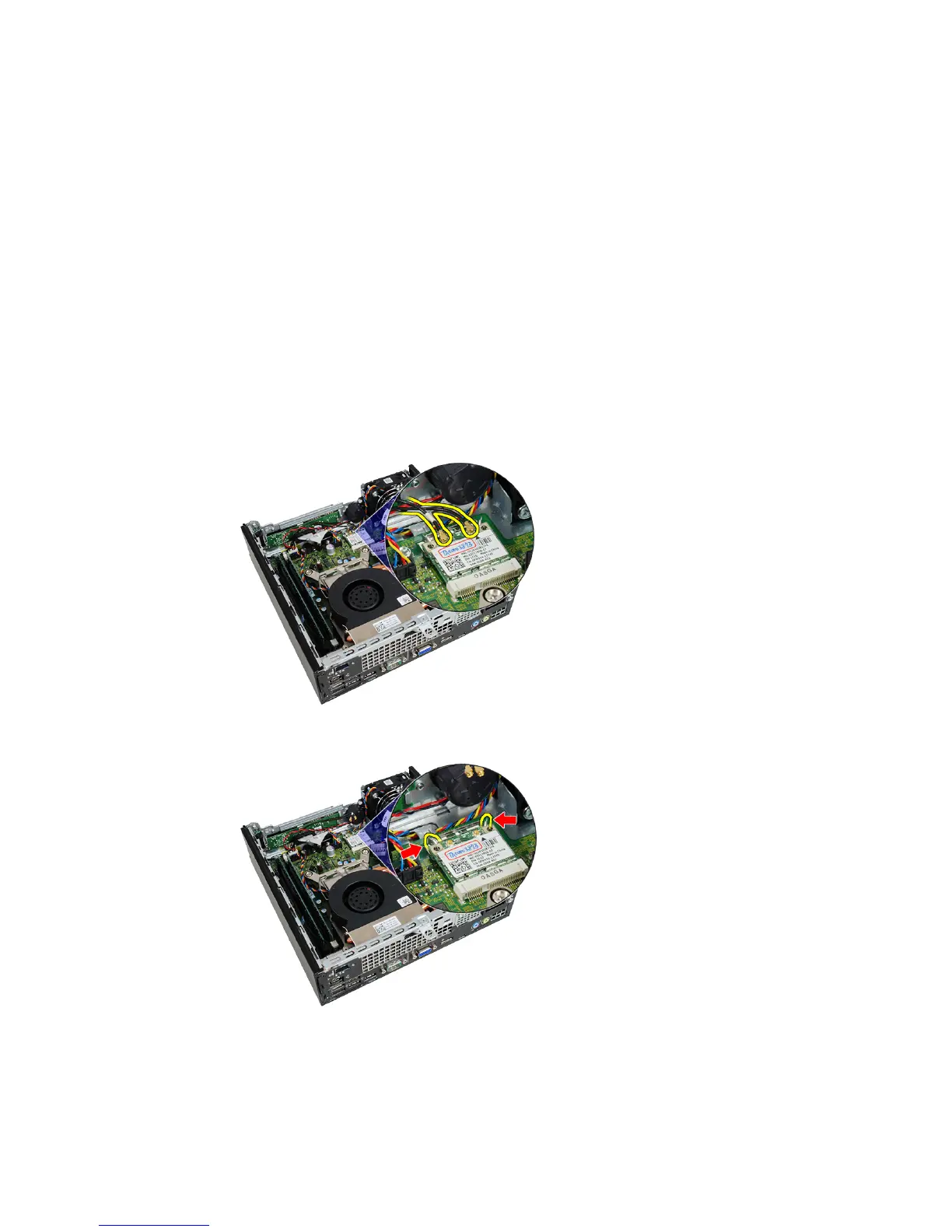

Removing the Wireless Module
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .
3. Remove the front bezel
4. Remove the drive cage .
5. Disconnect the cables from the wireless local area network (WLAN) card.
6. Push the securing levers away from the WLAN card.
7. Remove the WLAN card.
45
