Dell OptiPlex XE3 - Optická Mechanika; Removing the Optical Drive

7 Install the:
a HDD assembly
b Front bezel
c Side cover
8 Follow the procedure in After working inside your computer.
Optická mechanika
Removing the optical drive
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
3 To remove the optical drive:

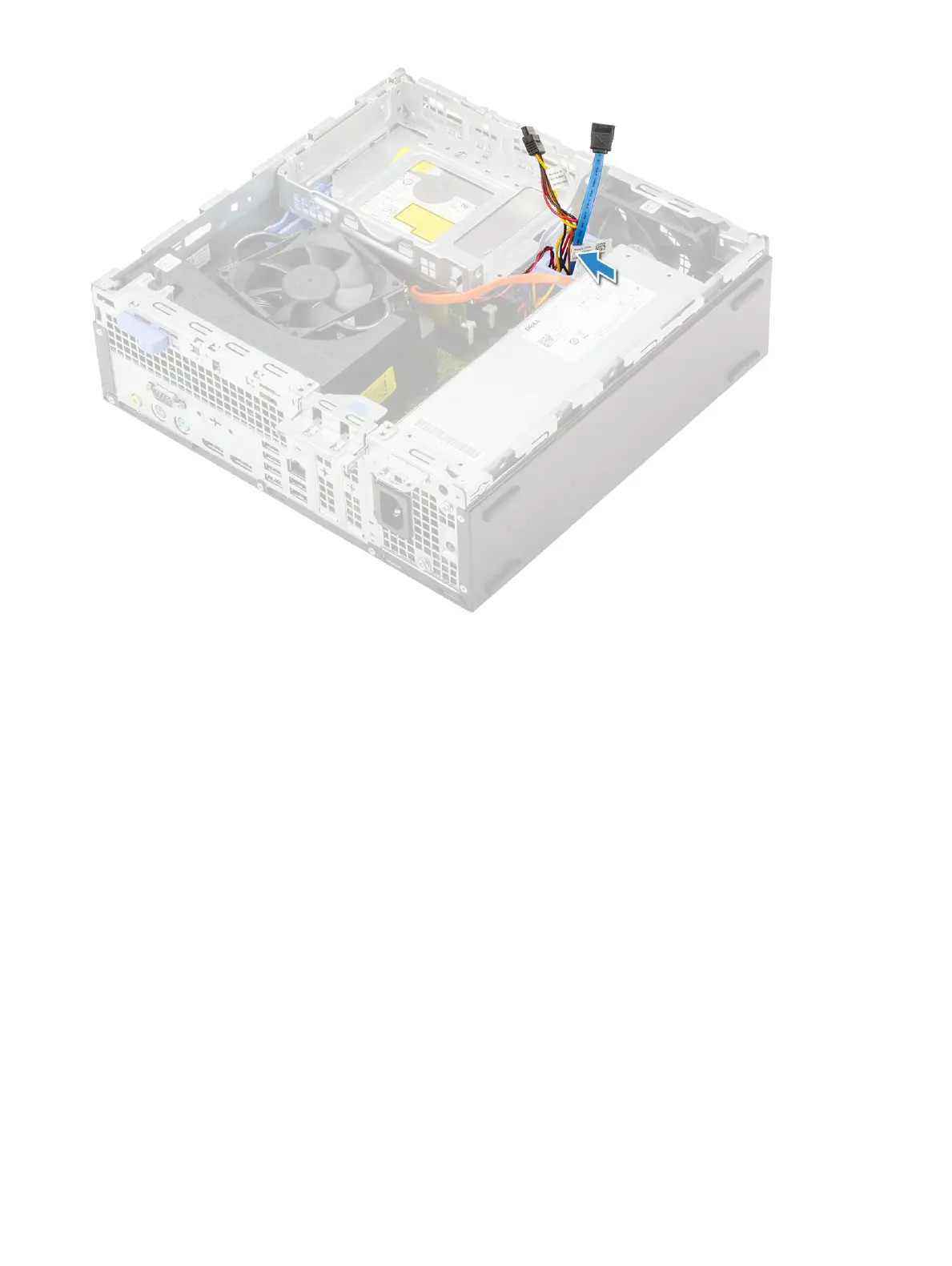

a Disconnect the hard drive data cable and power cable from the connectors on the hard drive [1, 2].
26
Demontáž a opětovná montáž
