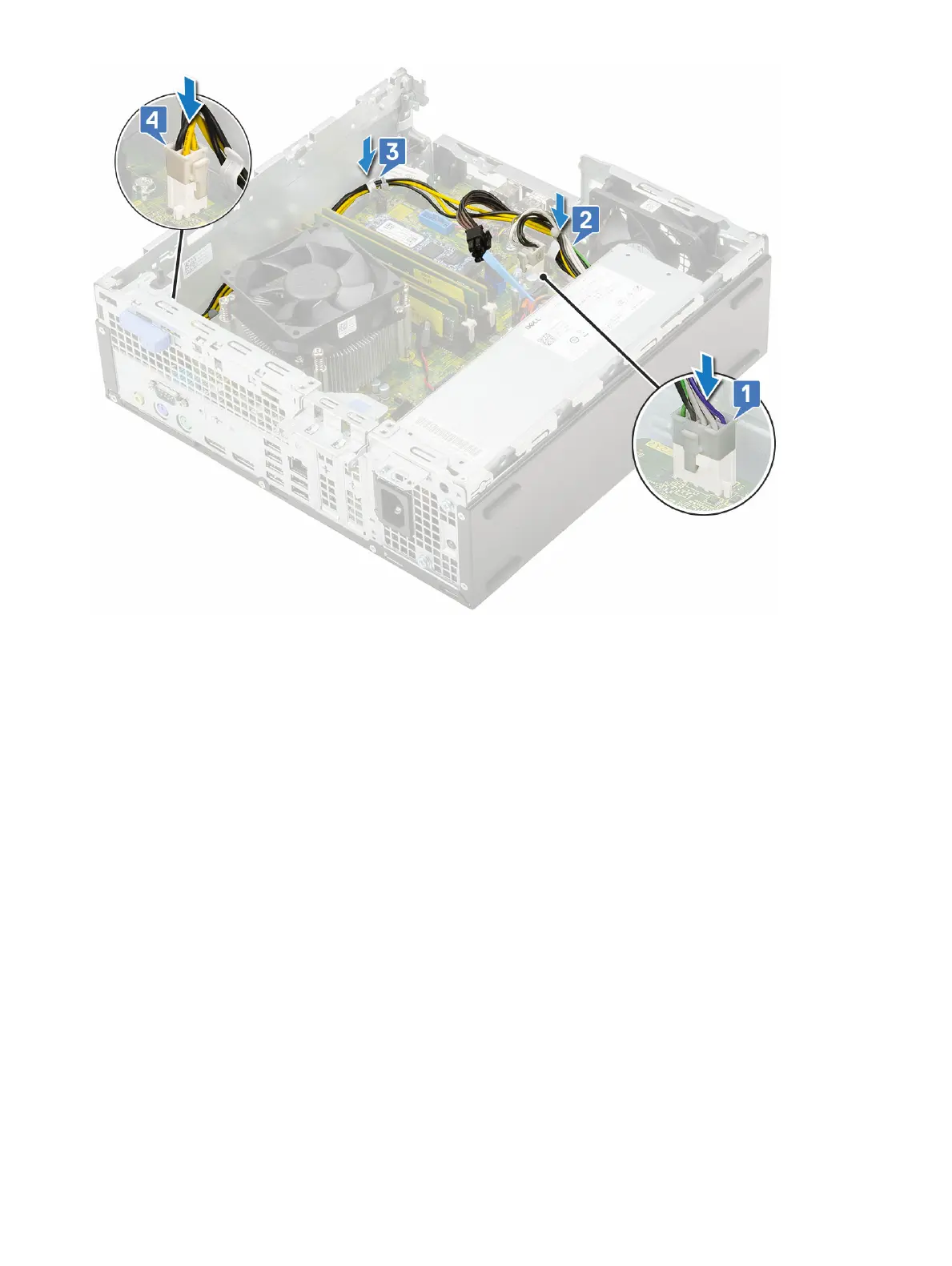

6 Install the:
a Heat sink fan
b Heat sink duct
c Hard drive and optical drive module
d HDD assembly
e Front bezel
f Side cover
7 Follow the procedure in After working inside your computer.
Reproduktor
Removing speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c HDD assembly
d Hard drive and optical drive module
e Heat sink duct
f Heat sink fan
g PSU
3 To remove the speaker:
a Disconnect the speaker cable from the connector on the system board [1].
54
Demontáž a opětovná montáž
