Dell P117F001 - System Board; Removing the System Board

Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the base cover.
3. Remove the memory module.
4. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever is applicable.
5. Remove the wireless card.
6. Remove the heatsink.
About this task

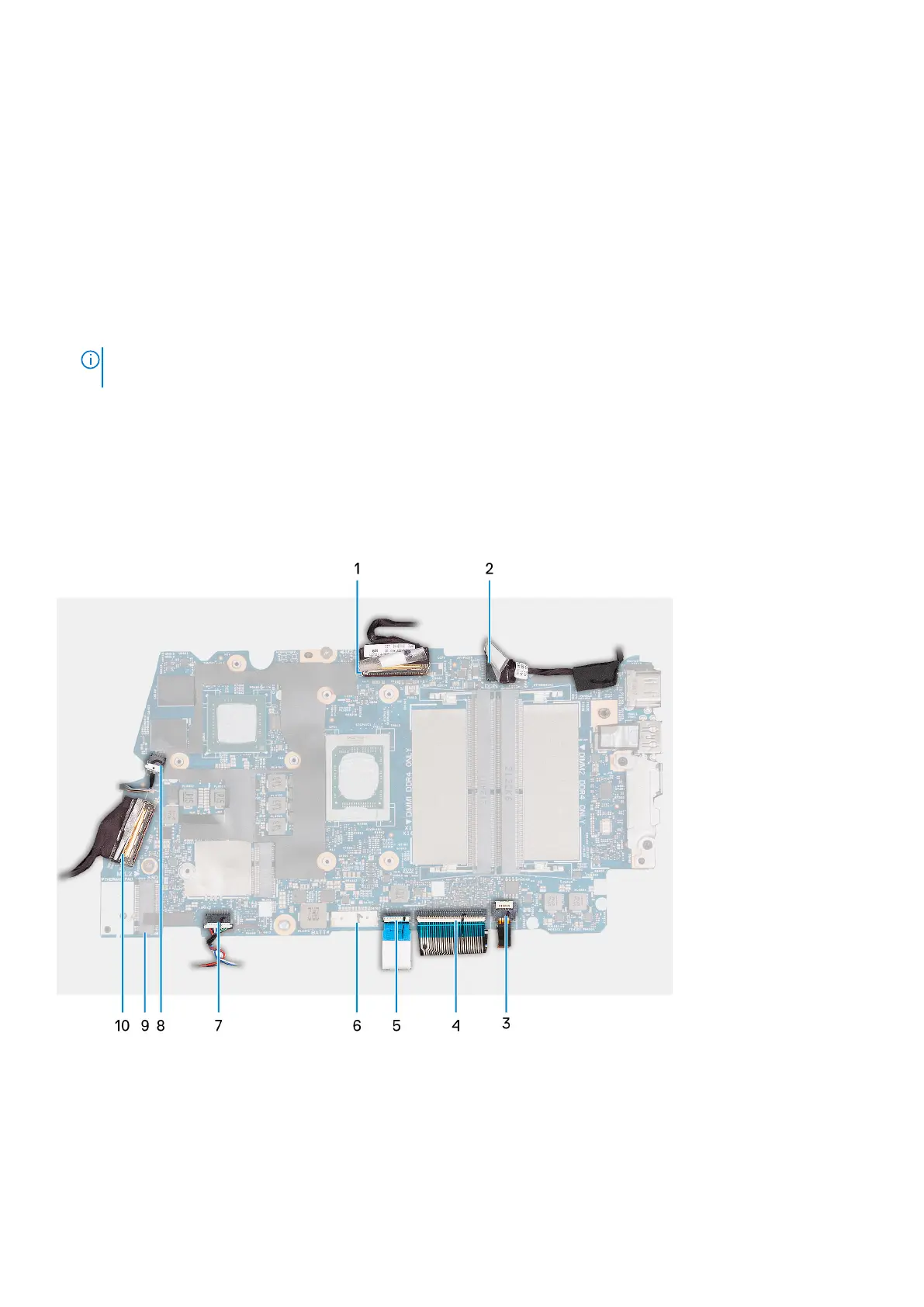

The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
1. Display-cable connector
2. Power-cable connector
3. Keyboard backlight-cable connector
4. Keyboard-cable connector
5. Touchpad-cable connector
6. Battery-cable connector
7. Speaker-cable connector
