Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in Before working inside your
computer.
2. Remove the base cover.
About this task

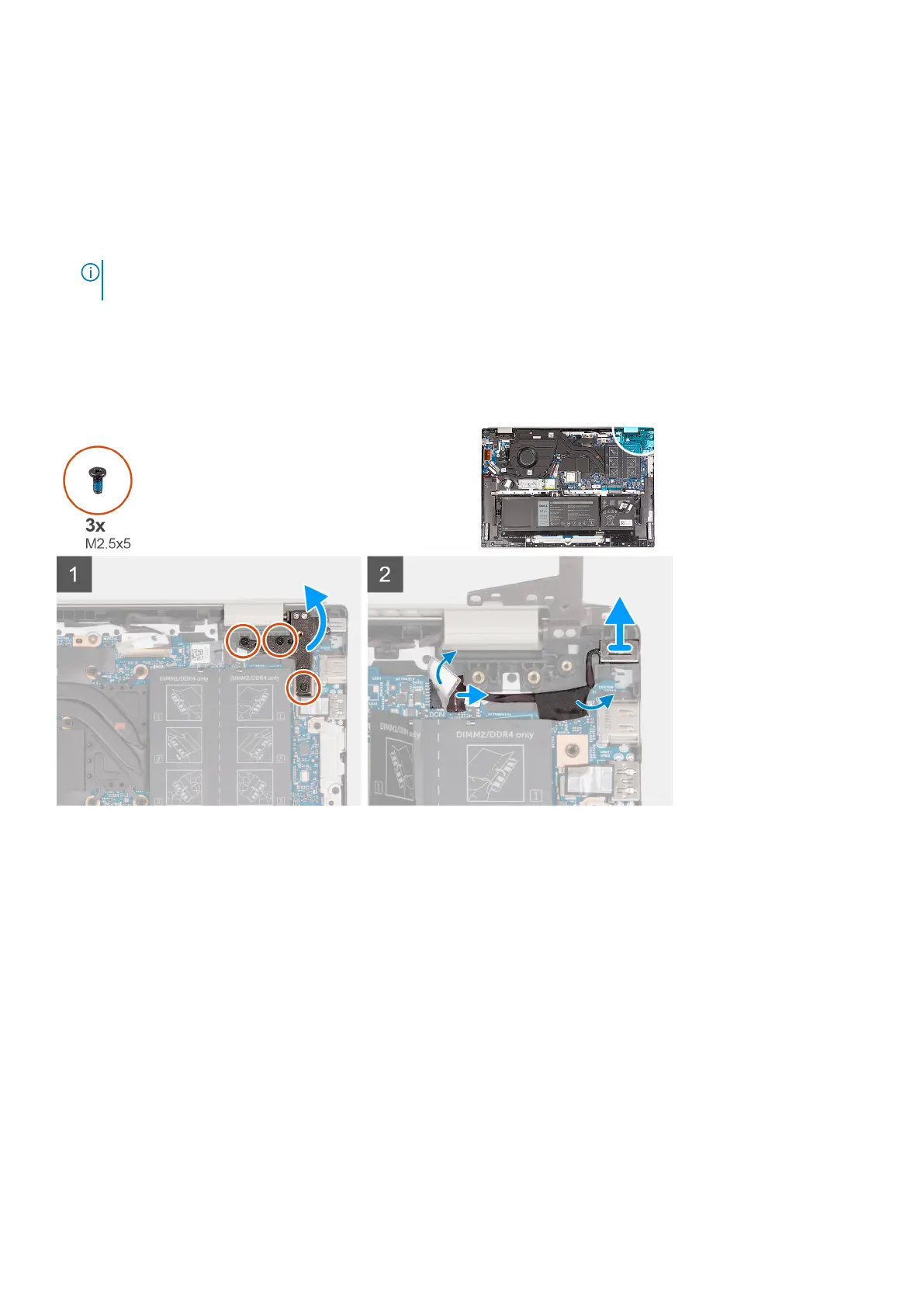

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the three screws (M2.5x5) that secure the left display hinge to the system board.
2. Open the left display hinge at an angle of 90 degrees.
3. Peel the adhesive tape and disconnect the power-adapter port cable from the system board.
4. Peel the adhesive tape that secures the power-adapter port cable to the system board.
5. Lift the power-adapter port and the cable off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
