Installing the LED board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

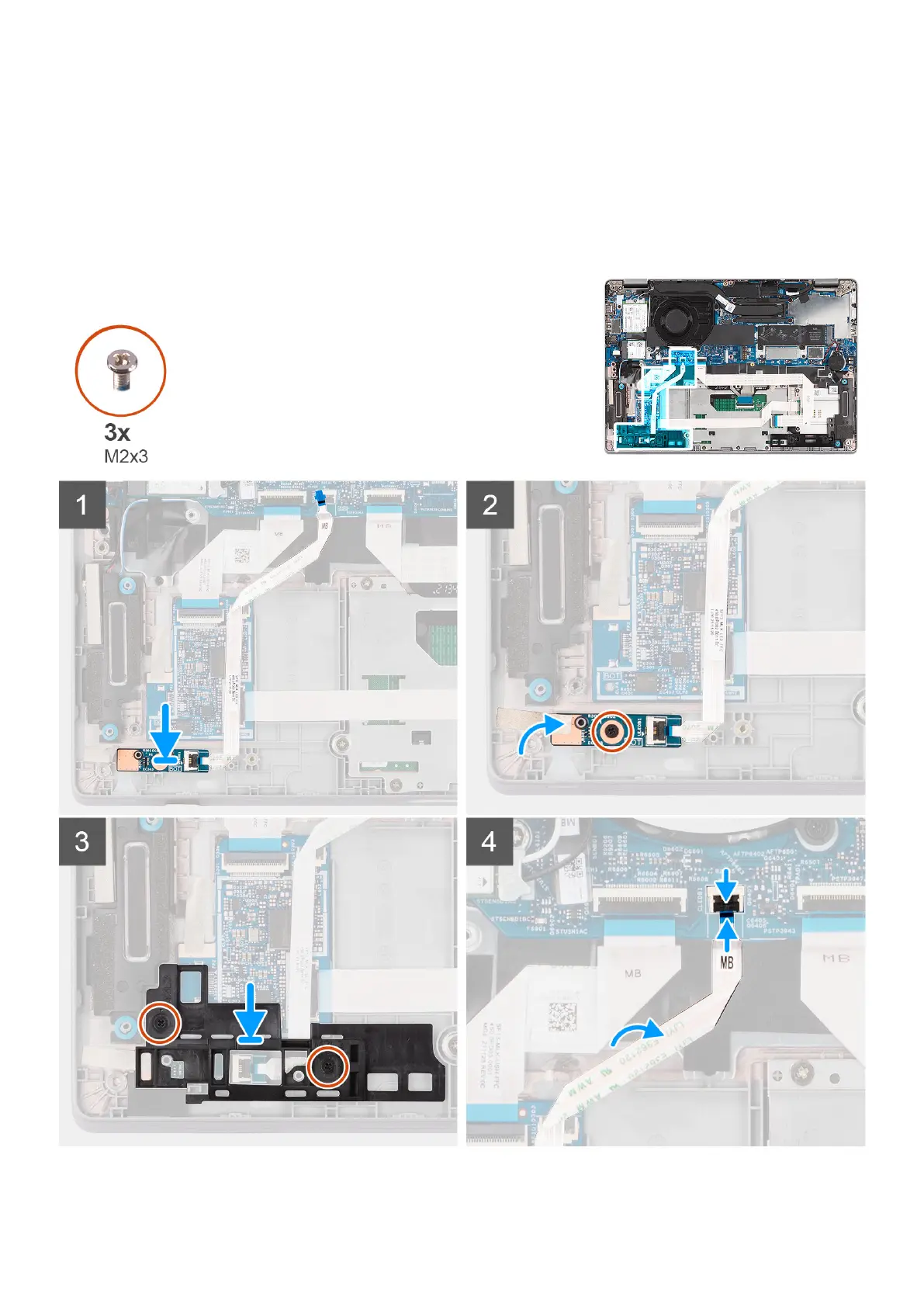

The following image indicates the location of the LED board and provides a visual representation of the installation procedure.
Removing and installing components 109
