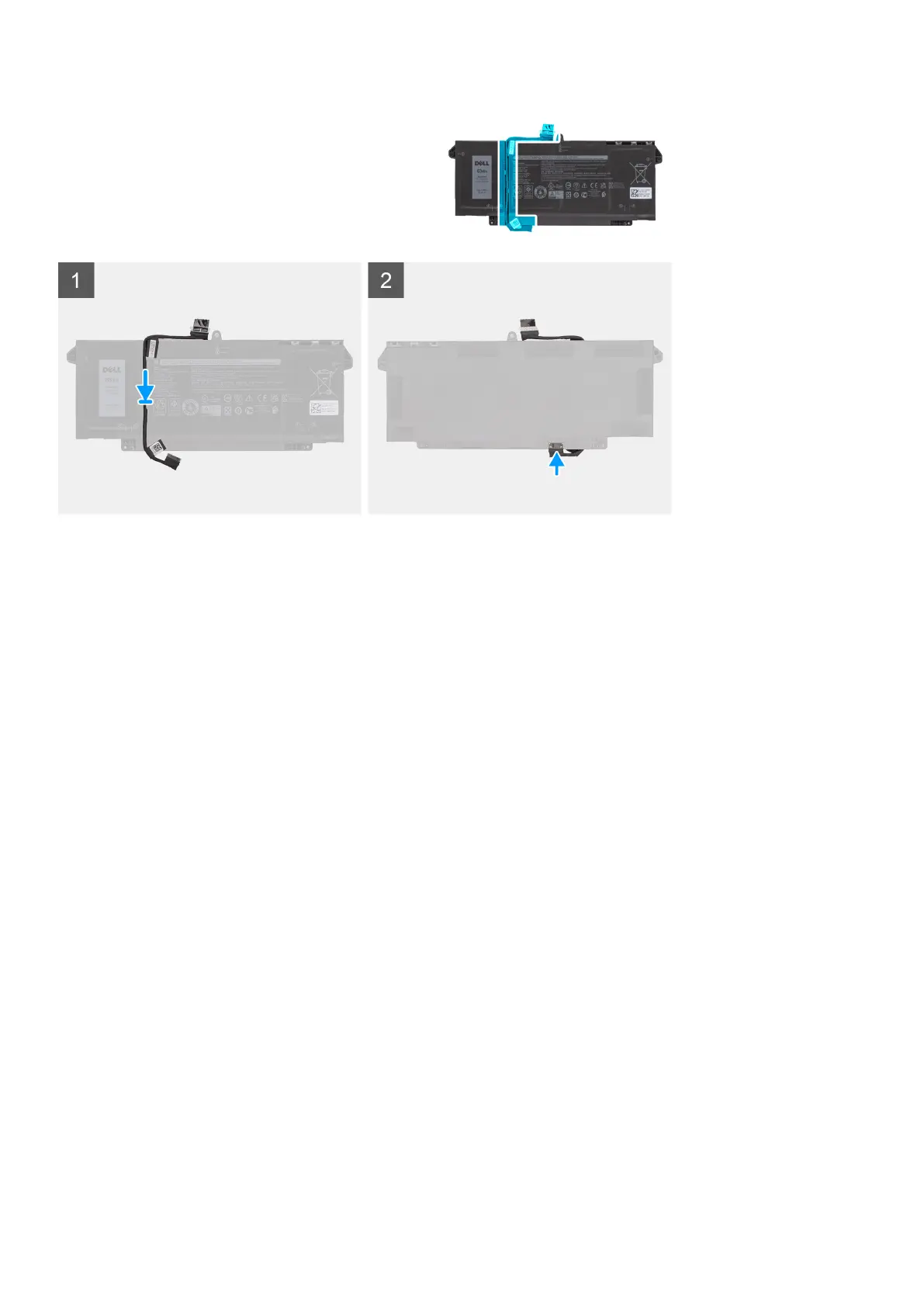

Steps
1. Align and place the battery cable on the battery.
2. Route the battery cable through the routing guides on the battery.
3. Connect the battery cable to the connector on the battery.
Next steps
1. Install the 3-cell battery or 4-cell battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer .
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the WLAN card and provide a visual representation of the removal procedure.
30
Removing and installing components
