Dell P138G - Page 53

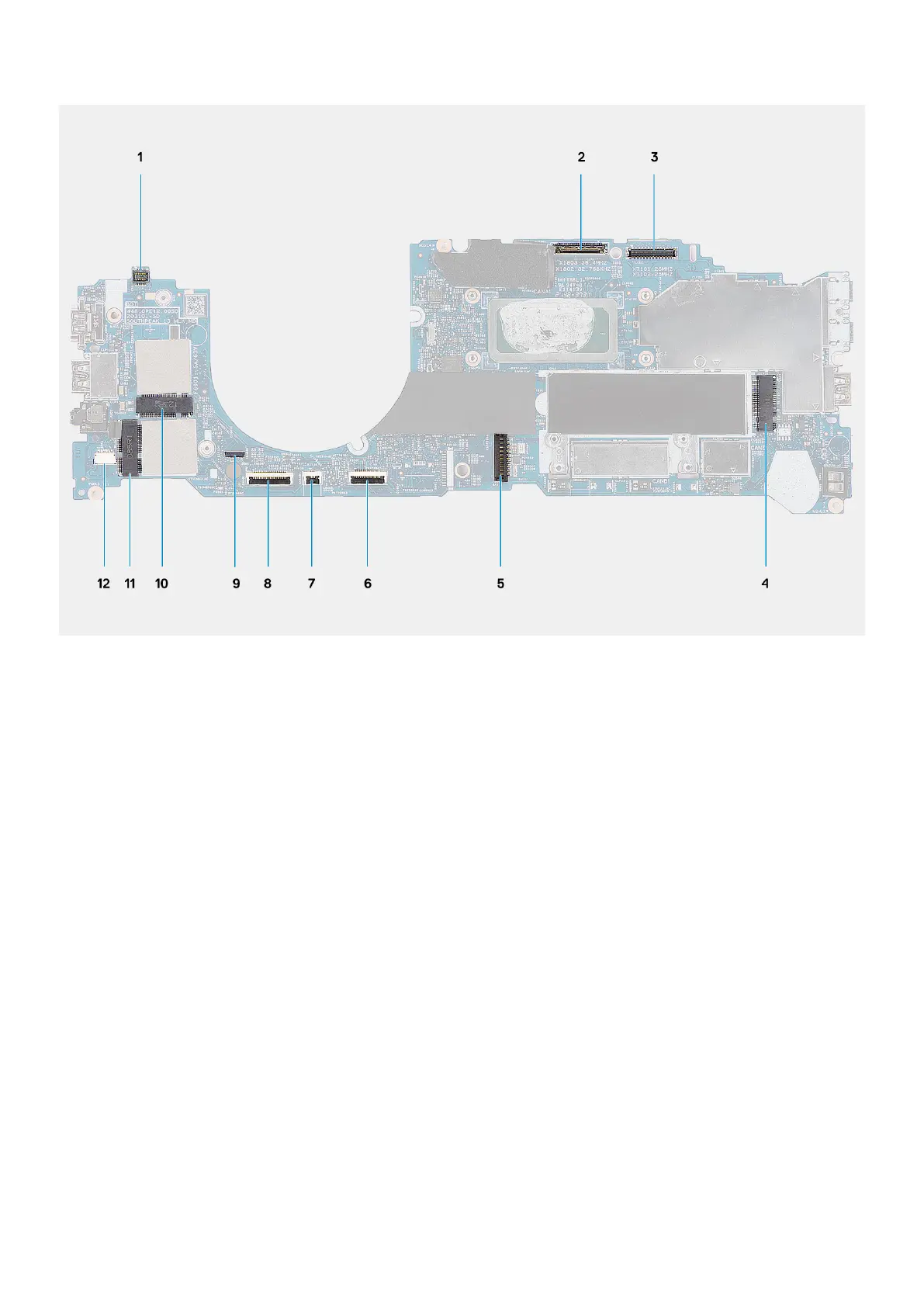

1. Fingerprint cable connector
2. Camera connector
3. eDP cable connector
4. SSD connector
5. Battery connector
6. Touchpad cable connector
7. LED cable connector
8. USH cable connector
9. P-sensor connector
10. WWAN connector
11. WLAN connector
12. Speaker cable connector
The following image indicates the location of the system board and provides a visual representation of the installation procedure.
Removing and installing components
53
