4. Remove the display assembly.
About this task

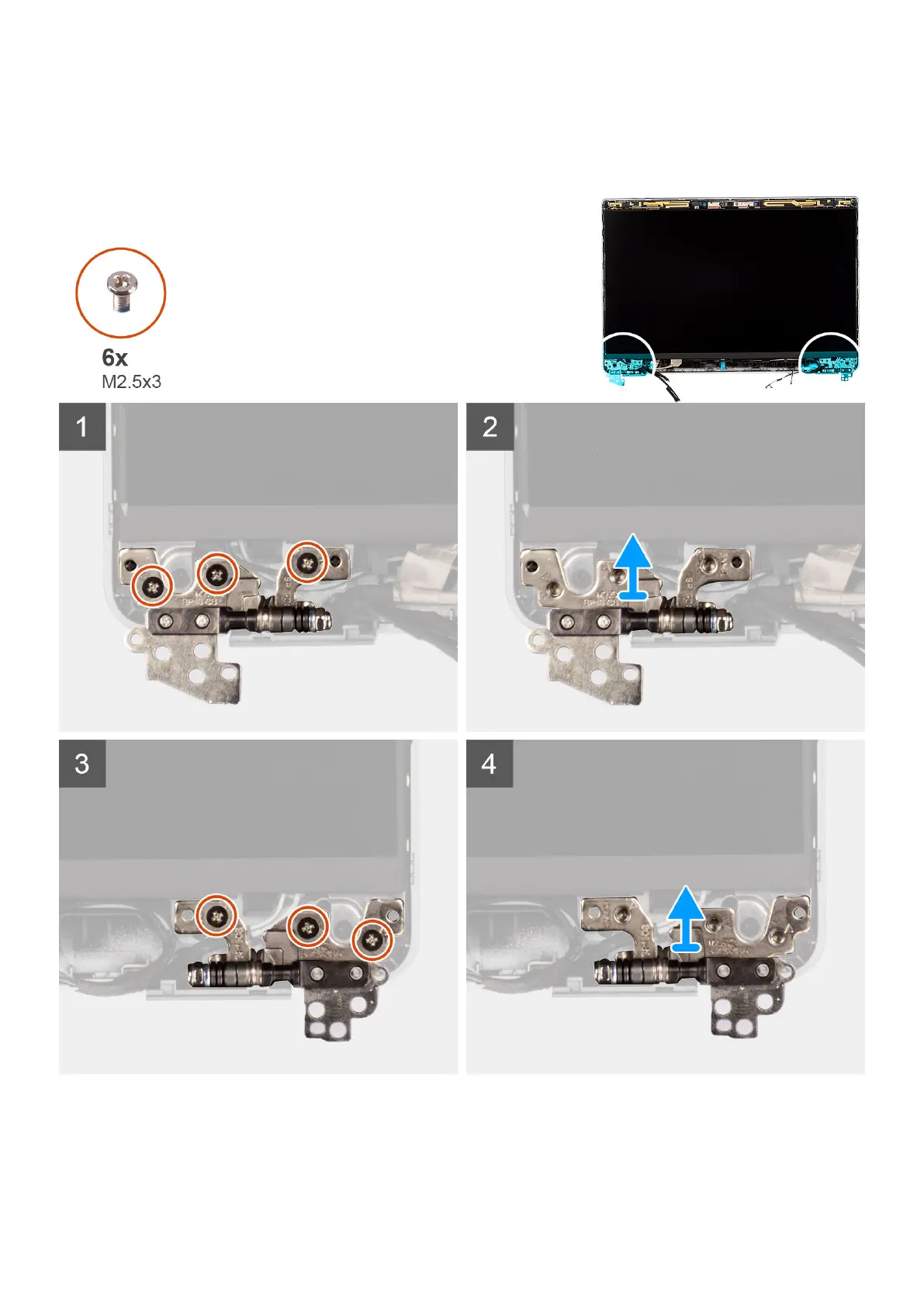

The following images indicate the location of the display hinges and provide a visual representation of the removal procedure.
Steps
1. Remove the six (M2.5x3) screws that secure the right and left display hinges to the display back cover.
2. Remove the display hinges from the display back cover.
