NOTE: Ensure that your computer is in Service Mode. For more information see, step 6 in before working inside your
computer.
2. Remove the Nano-SIM card tray.
3. Remove the base cover.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.

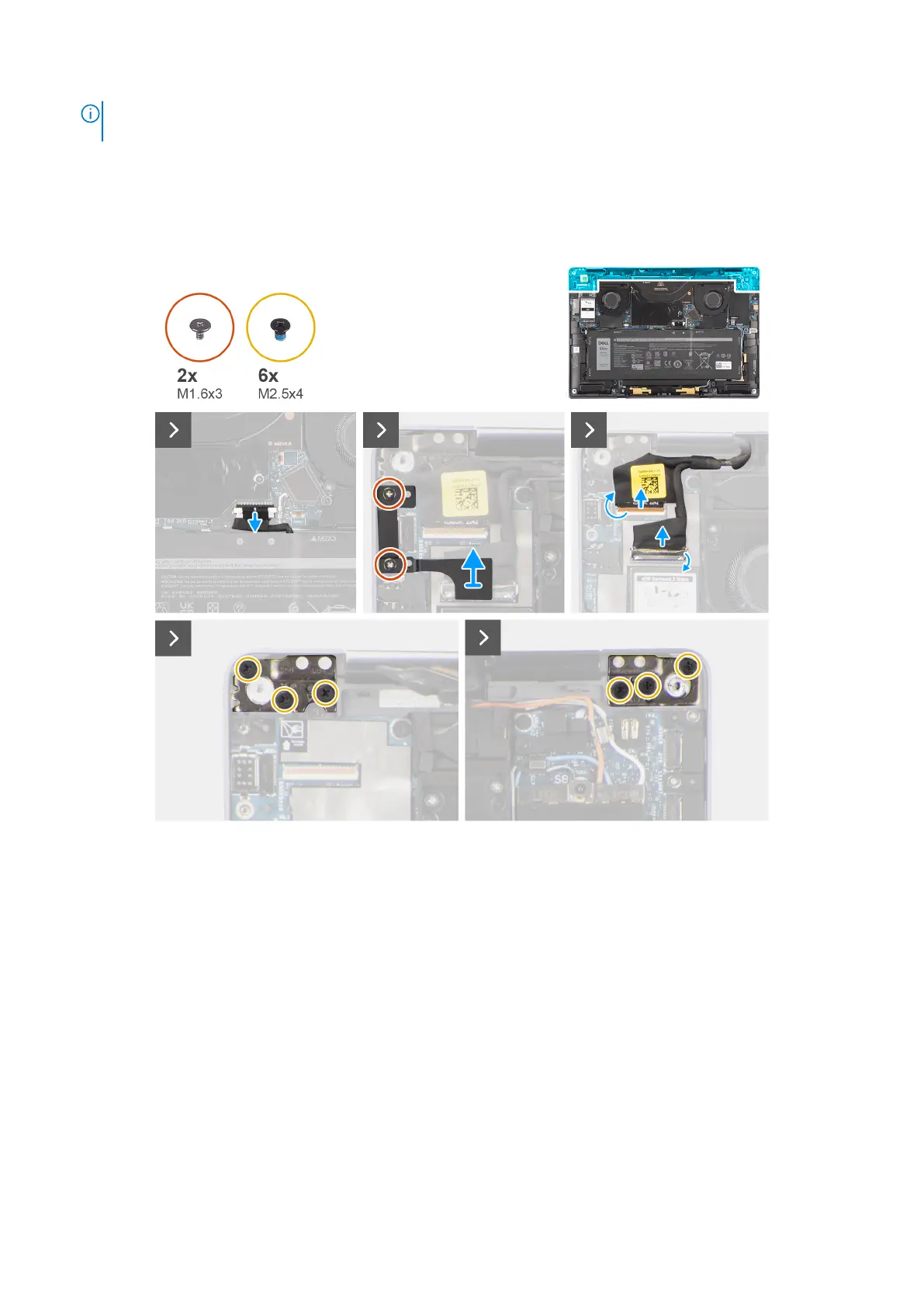

Figure 45. Removing the display assembly
Removing and installing Field Replaceable Units (FRUs)
65
