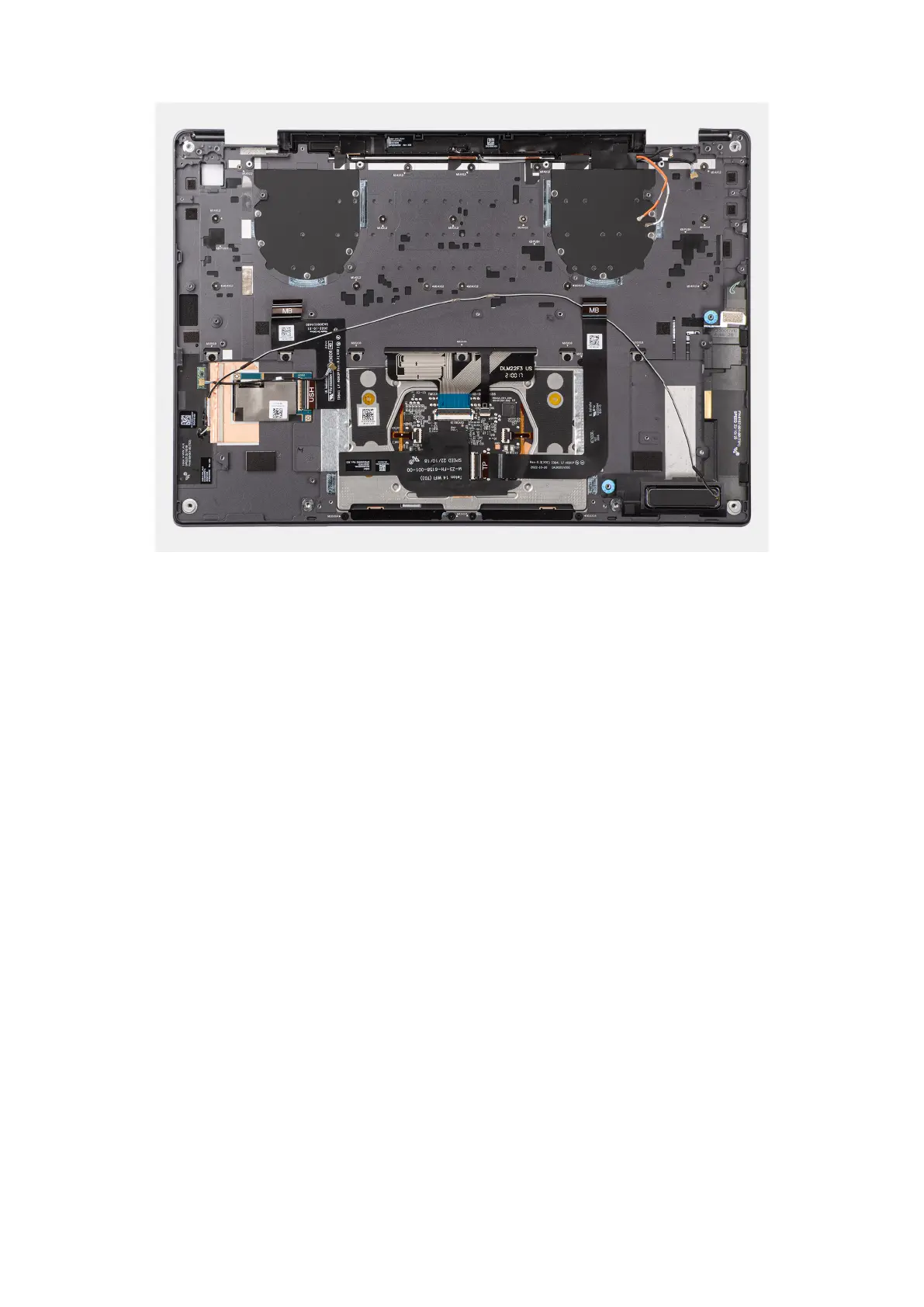

Figure 69. Installing the palm-rest assembly and keyboard assembly
Steps
Place the palm-rest and keyboard assembly on a flat surface.
Next steps
1. Install the power button.
2. Install the right-speaker.
3. Install the system board.
4. Install the battery.
5. Install the heat sink.
6. Install the display assembly.
7. Install the left fan.
8. Install the right fan.
9. Install the WWAN card, if applicable.
10. Install the solid-state drive.
11. Install the base cover.
12. Install the Nano-SIM card tray, if applicable.
13. Follow the procedure in after working inside your computer.
86
Removing and installing Field Replaceable Units (FRUs)
