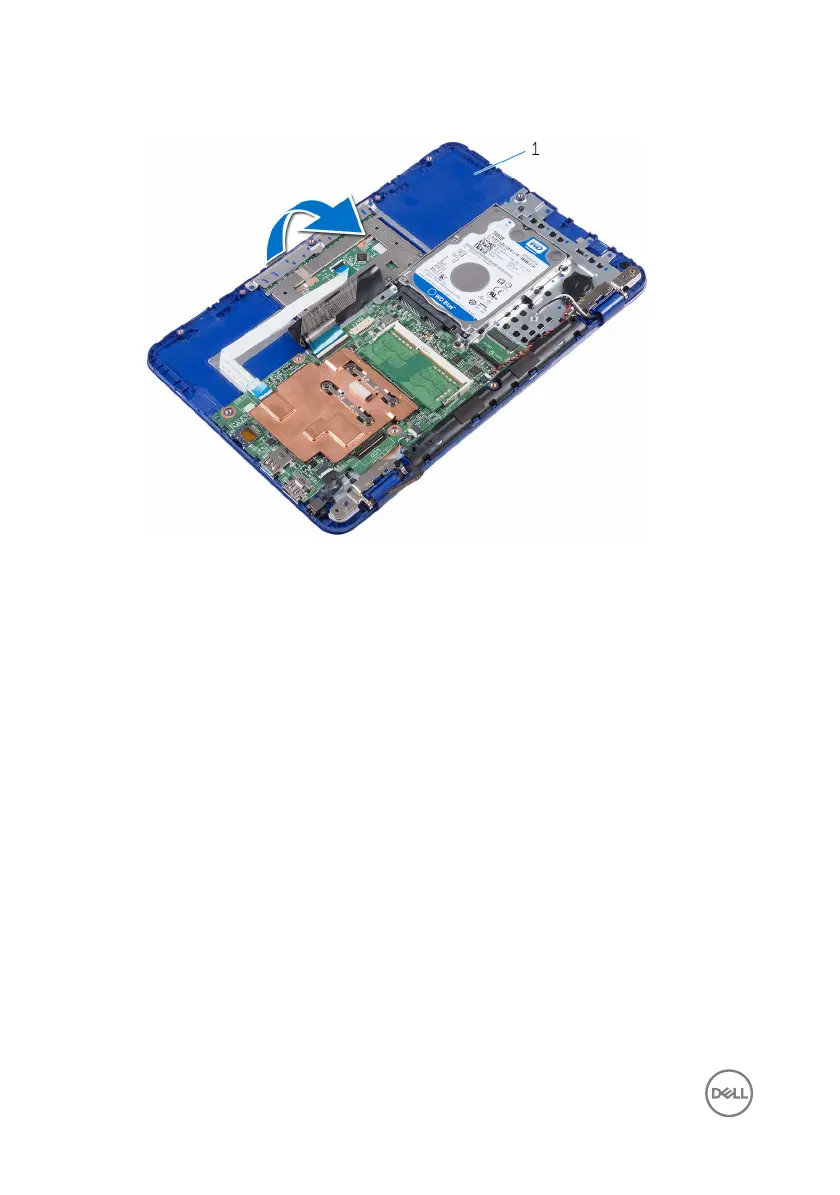

4 Open the palm rest and keyboard assembly at an angle.

1 palm rest and keyboard

assembly

5 Remove the screws that secure the display assembly to the palm rest and

keyboard assembly.
