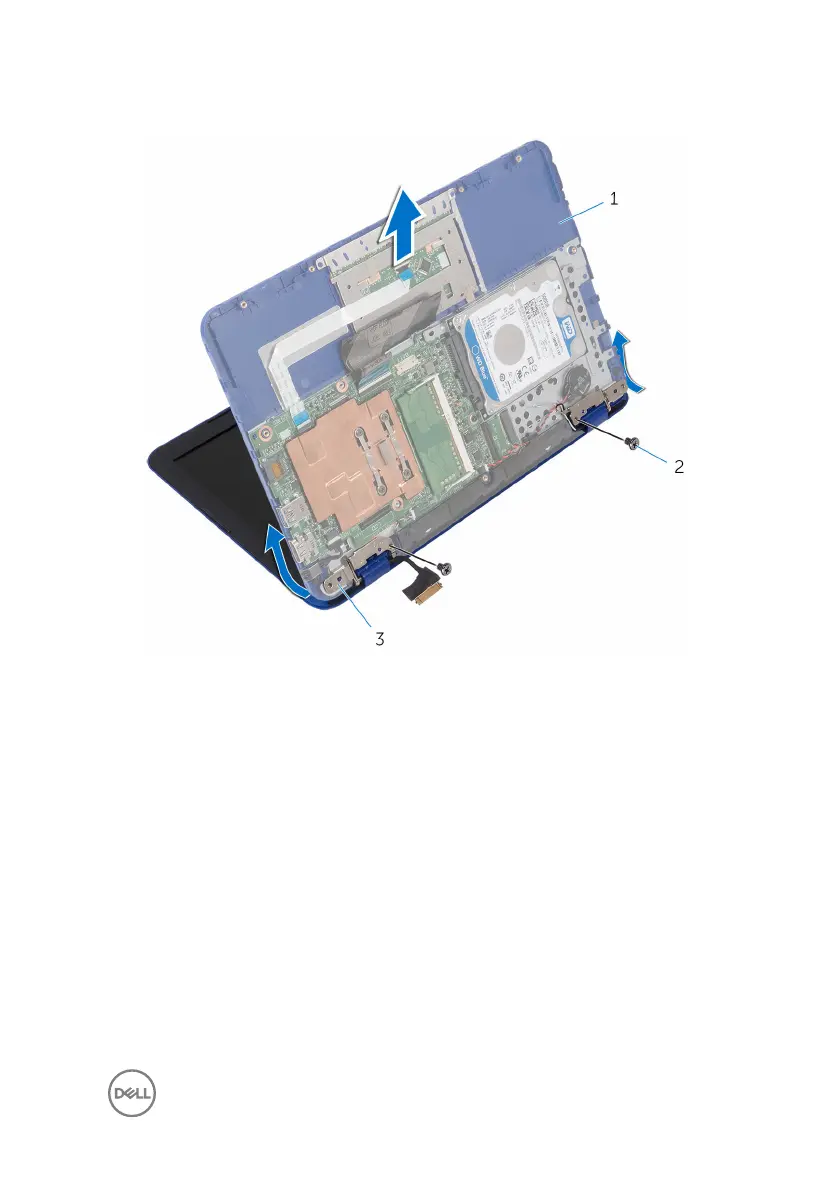

6 Slide and lift the palm rest and keyboard assembly off the display assembly.

1 palm rest and keyboard

assembly

2 screws (2)

3 display hinges (2)

After performing all the steps, we are left with display assembly.
