Installing speakers

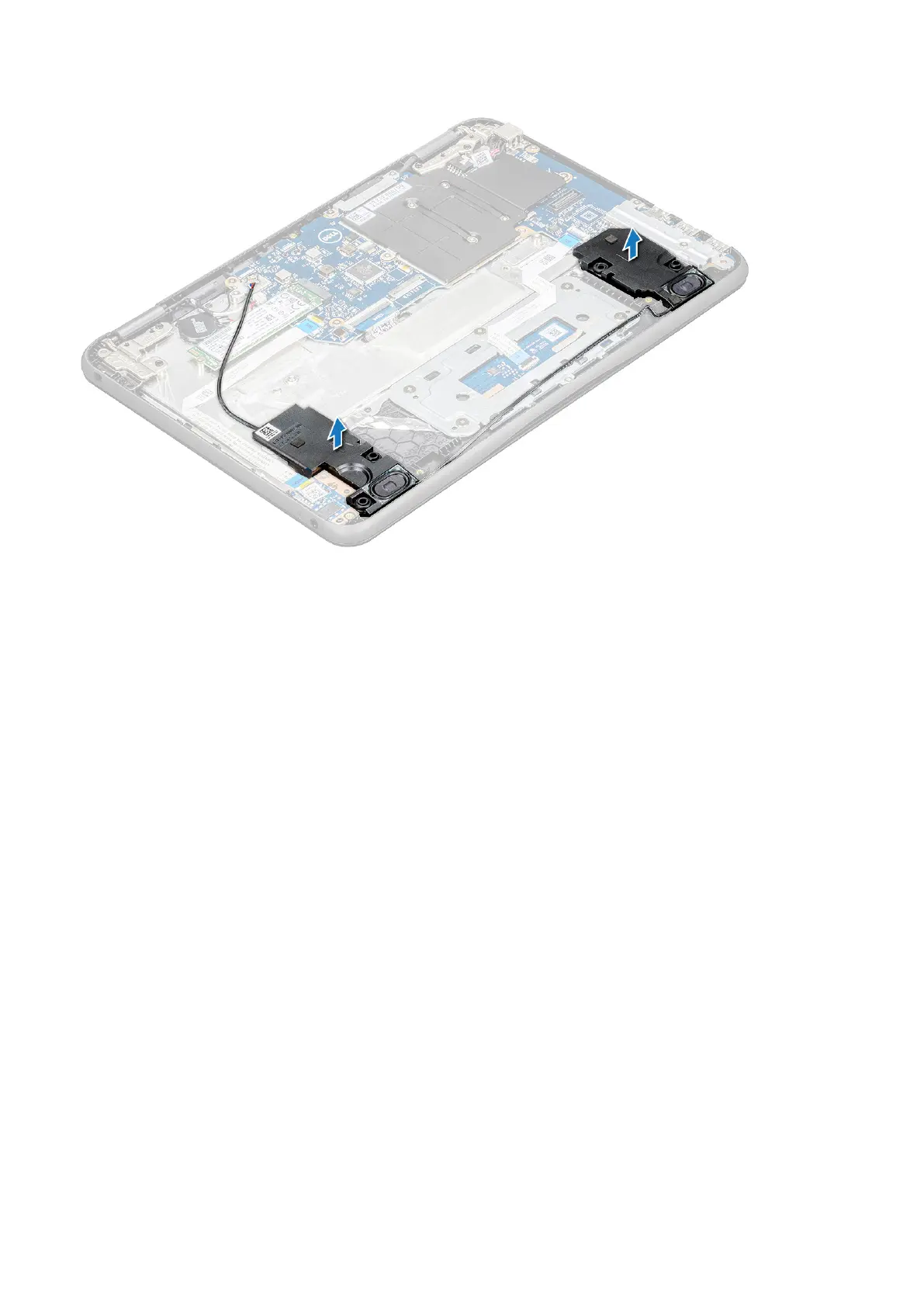

1. Place the speakers into the slots on the computer.
2. Route the speaker cable through the retention clips through routing channel.
3. Affix the adhesive tape to secure the speaker cable on the computer.
4. Connect the speaker cable to the connector on the system board.
5. Install the:
a. battery
b. base cover
6. Follow the procedure in After working inside your computer.
Touchpad
Removing touchpad
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. speaker
3. To remove the touchpad cable:
a. Lift the latch, and disconnect the touchpad cable from the connector on the touchpad [1].
b. Peel off the adhesive-backed cable to release it from the touchpad [2].
c. Remove the adhesive tape that secures the touchpad bracket to the touchpad [3].
Disassembly and reassembly
35
