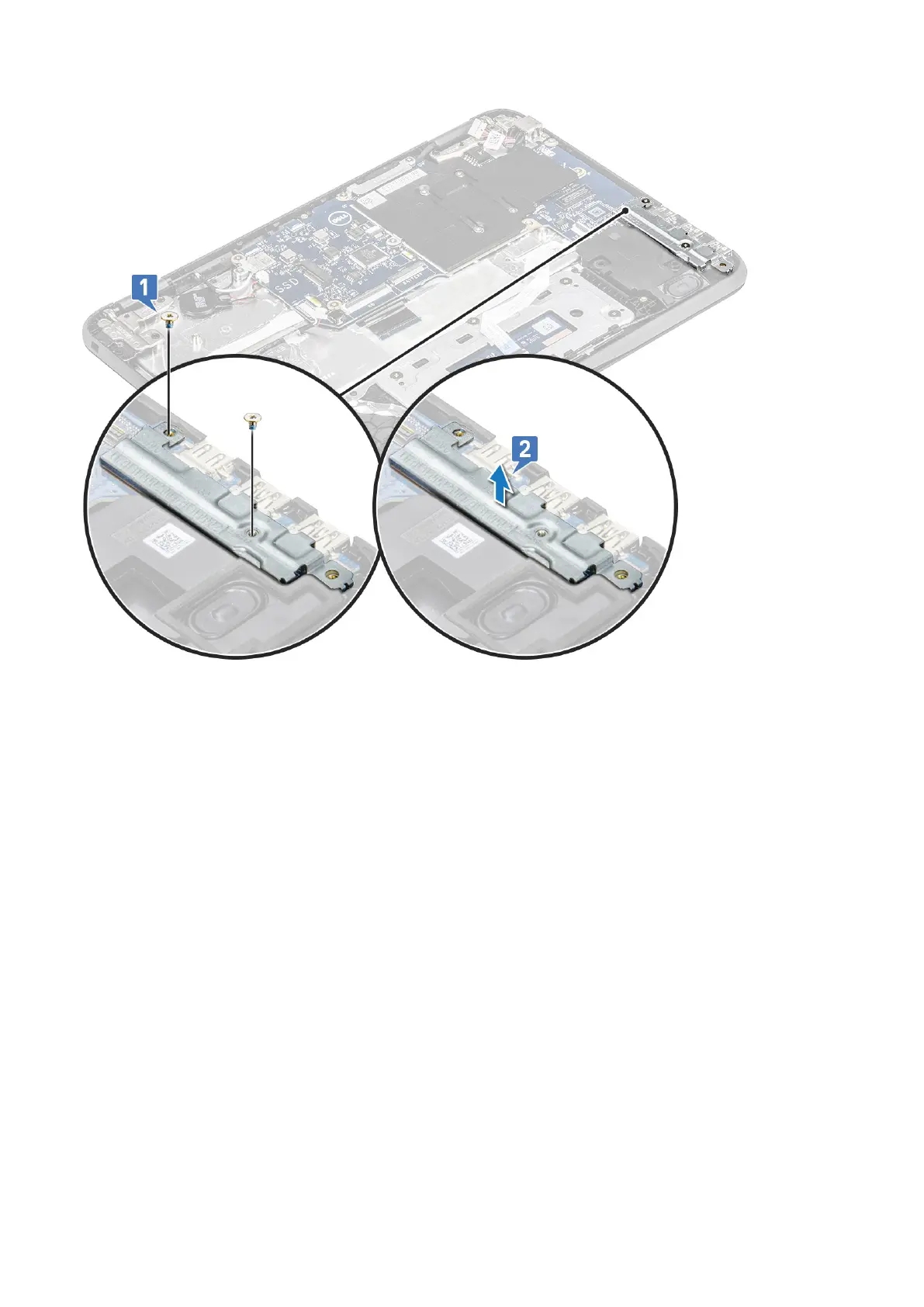

5. To remove the metal bracket (WLAN and display cable):
a. Remove the M2x3 screw and lift the metal bracket that secures the WLAN card on the system board [1, 2]
b. Disconnect the WLAN cables [3].
c. Remove the two M2.0 x 3.0 screws and lift the metal bracket that secures the display cable on the computer [4, 5]
d. Lift the latch, and disconnect the display cable [6]
40
Disassembly and reassembly
