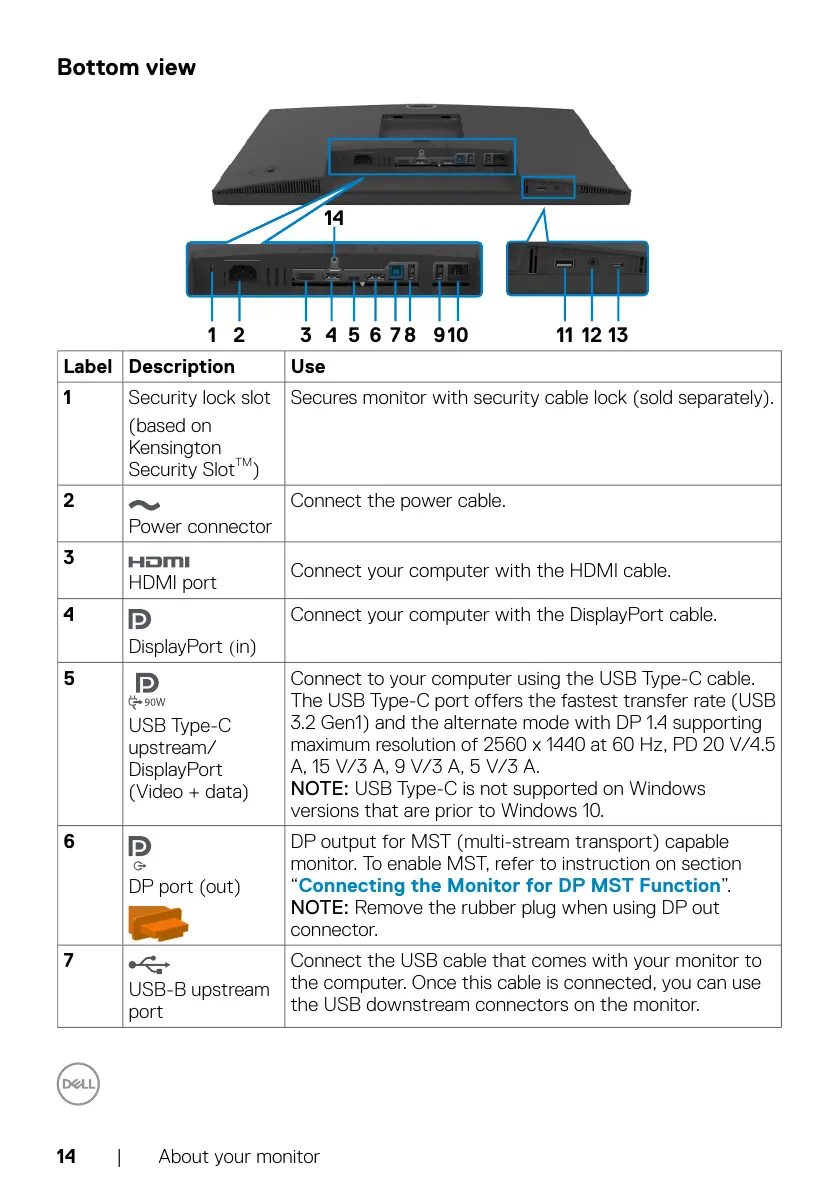

14 | About your monitor
Bottom view
1 4 5 6 7 8
14
32 13910 11 12
Label Description Use
1 Security lock slot
(based on
Kensington
Security Slot
TM
)
Secures monitor with security cable lock (sold separately).
2
Power connector
Connect the power cable.
3
HDMI port
Connect your computer with the HDMI cable.
4
DisplayPort
(
in)
Connect your computer with the DisplayPort cable.
5
USB Type-C
upstream/
DisplayPort
(Video + data)
Connect to your computer using the USB Type-C cable.
The USB Type-C port offers the fastest transfer rate (USB
3.2 Gen1) and the alternate mode with DP 1.4 supporting
maximum resolution of 2560 x 1440 at 60 Hz, PD 20 V/4.5
A, 15 V/3 A, 9 V/3 A, 5 V/3 A.
NOTE: USB Type-C is not supported on Windows
versions that are prior to Windows 10.
6
DP port (out)
DP output for MST (multi-stream transport) capable
monitor. To enable MST, refer to instruction on section
“Connecting the Monitor for DP MST Function”.
NOTE: Remove the rubber plug when using DP out
connector.
7
USB-B upstream
port
Connect the USB cable that comes with your monitor to
the computer. Once this cable is connected, you can use
the USB downstream connectors on the monitor.
