50 | Setting up the monitor

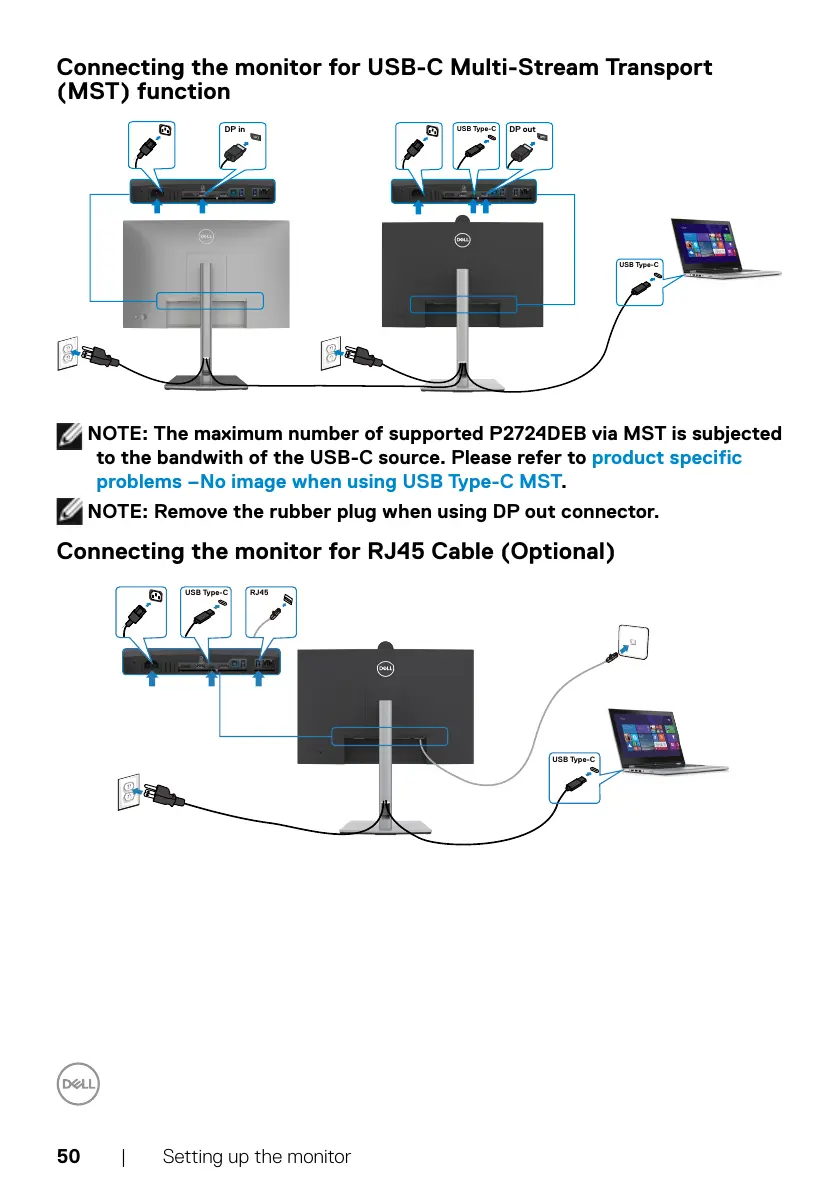

Connecting the monitor for USB-C Multi-Stream Transport
(MST) function
DP out
USB Type-C
DP in
USB Type-C
NOTE: The maximum number of supported P2724DEB via MST is subjected
to the bandwith of the USB-C source. Please refer to product specific
problems –No image when using USB Type-C MST.
NOTE: Remove the rubber plug when using DP out connector.
Connecting the monitor for RJ45 Cable (Optional)
USB Type-C
USB Type-C
RJ45
