58 | Setting up the monitor

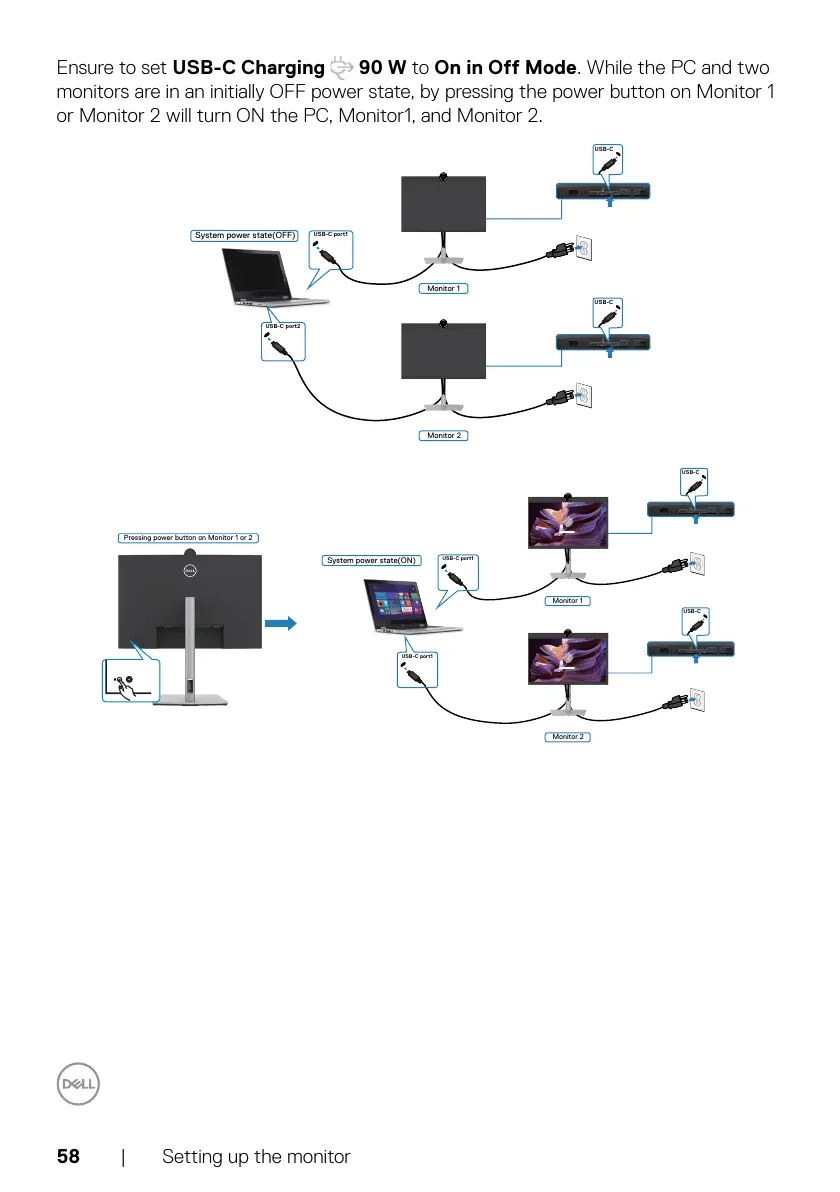

Ensure to set USB-C Charging 90 W to On in Off Mode. While the PC and two
monitors are in an initially OFF power state, by pressing the power button on Monitor 1
or Monitor 2 will turn ON the PC, Monitor1, and Monitor 2.
Monitor 1
System power state(OFF)
Monitor 2
USB-C port1
USB-C port2
USB-C
USB-C
System power state(ON)
Pressing power button on Monitor 1 or 2
Monitor 1
Monitor 2
USB-C
USB-C
USB-C port1
USB-C port1
