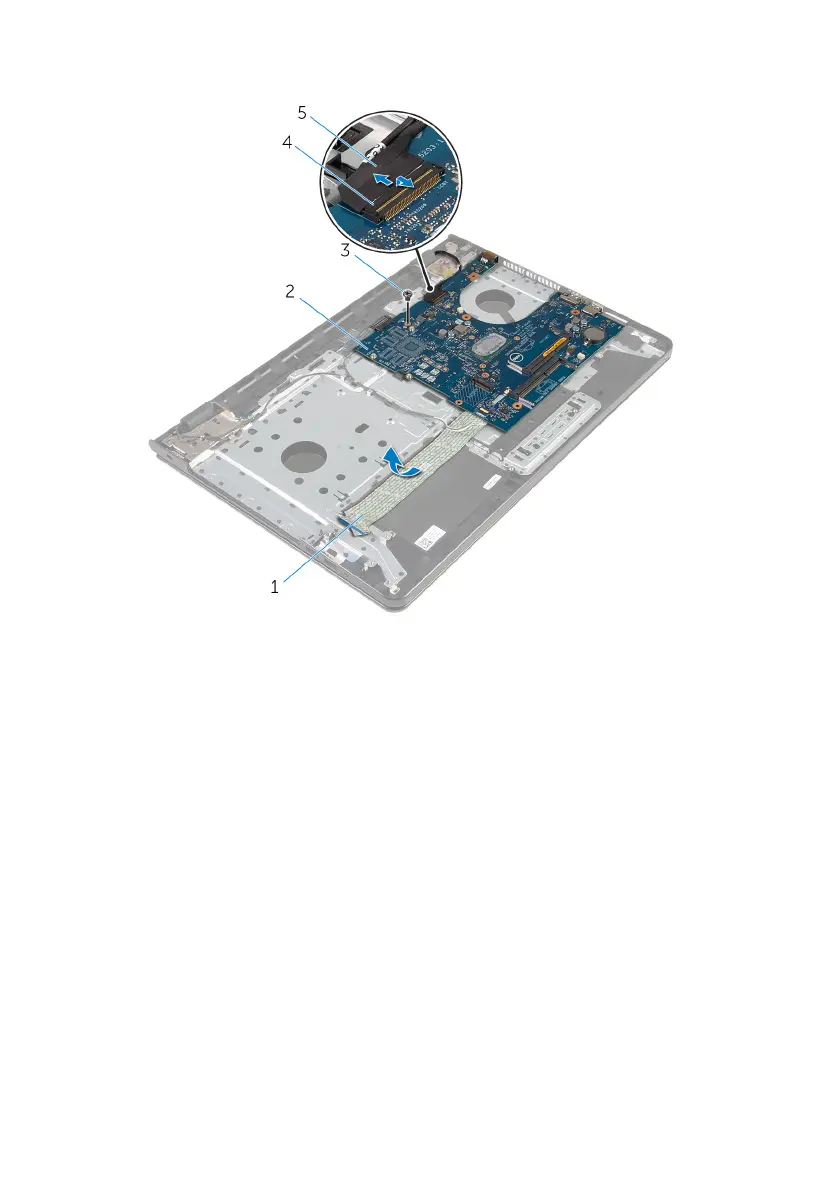

6 Peel the I/O board cable off the palm-rest assembly.

1 I/O board cable 2 system board

3 screw 4 connector latch

5 display cable

7 Carefully lift the system board from the inner edge to release the system

board from the system-board connector on the palm-rest assembly.
