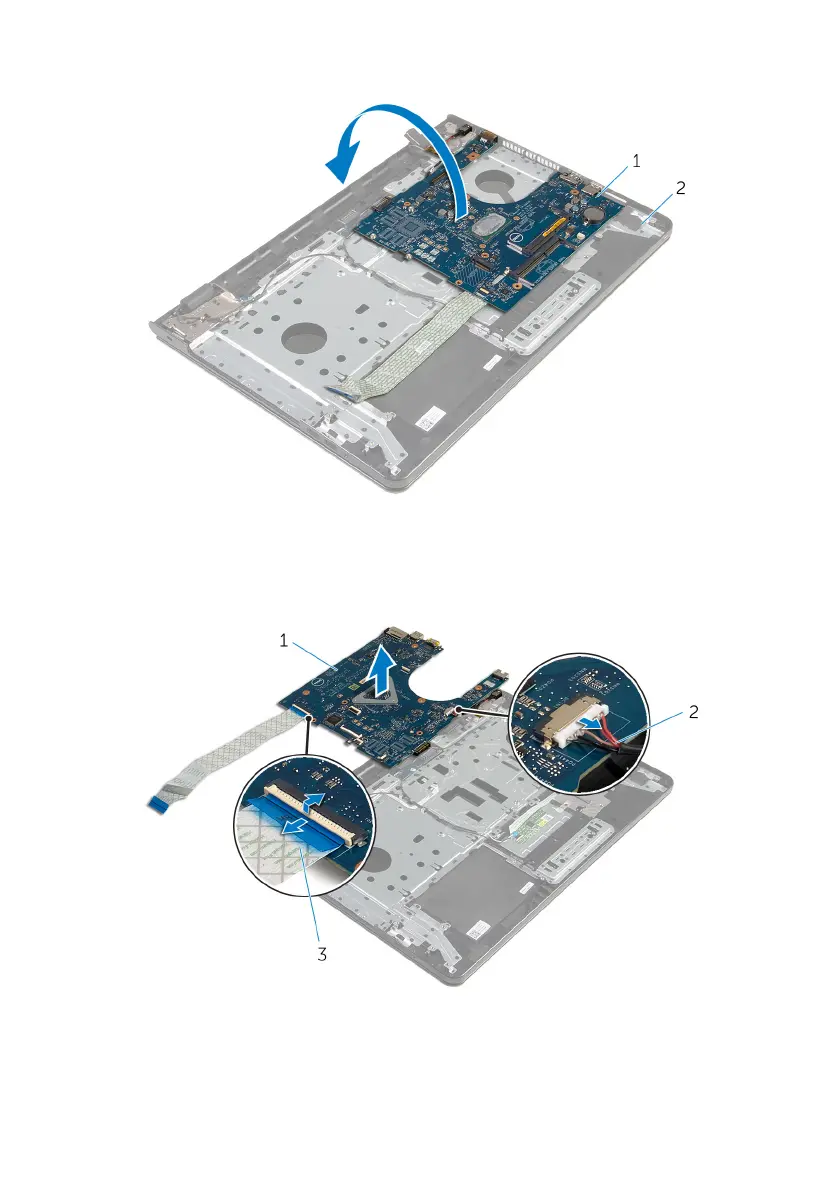

8 Turn the system board over.
1 system board 2 palm-rest assembly
9 Disconnect the power-adapter port cable from the system board.
10 Lift the latch and disconnect the I/O-board cable from the system board.
1 system board 2 power-adapter port cable
3 I/O-board cable
63
