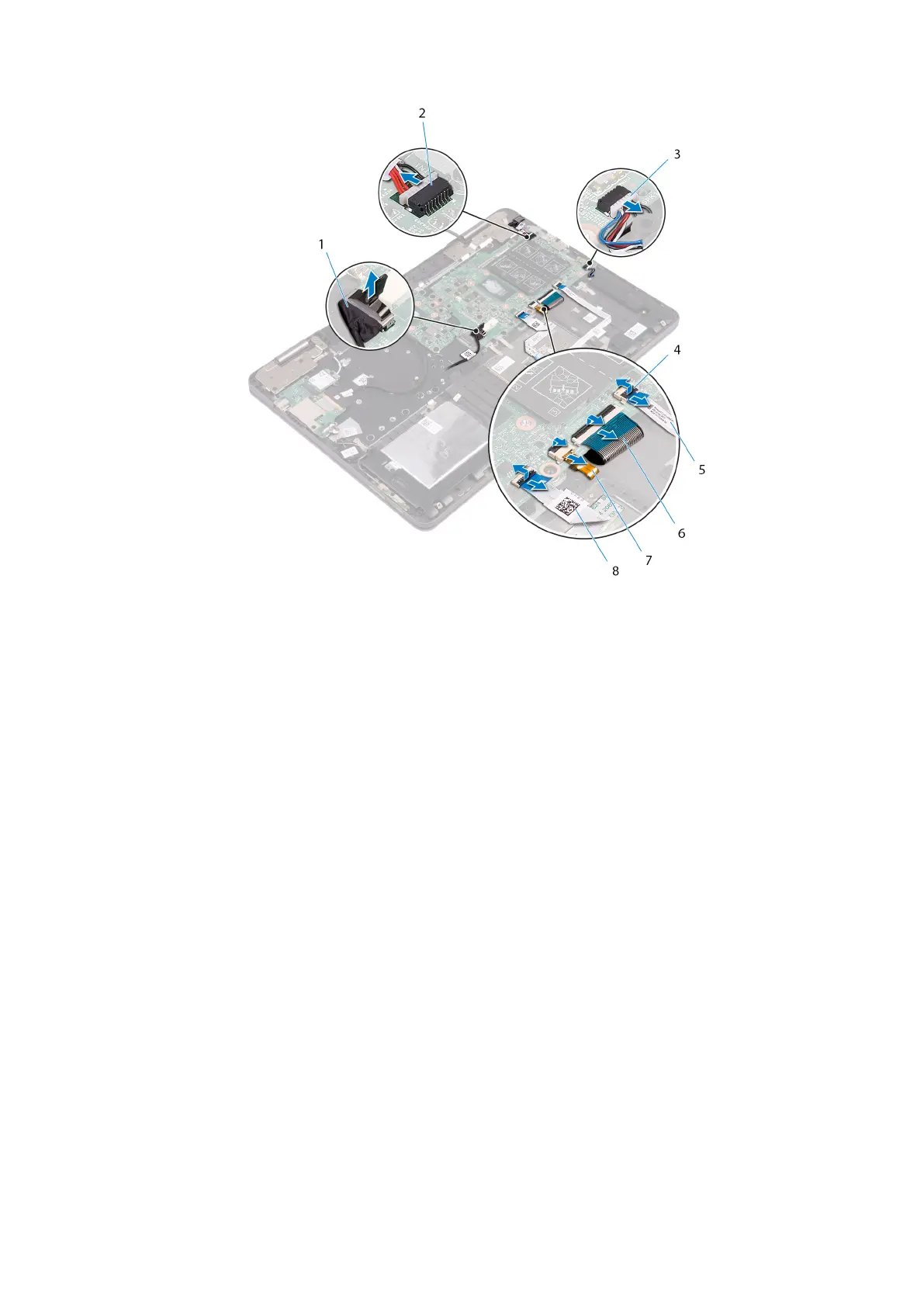

Figure 30. Disconnecting the cables
1.
hard-drive cable 2. power-adapter port cable
3. speaker cable 4. latches (4)
5. status-light board cable 6. keyboard cable
7. keyboard-backlight cable 8. touch pad cable
10. Remove the four screws (M2x3) that secure the graphics daughter-board brackets to the graphics daughter-board and the
system board.
11. Remove the two screws (M2x3) that secure the USB Type-C bracket to the system board and the palm-rest assembly.
Removing the system board
63
