Dell P72F - Page 109

To Next Page

To Previous Page

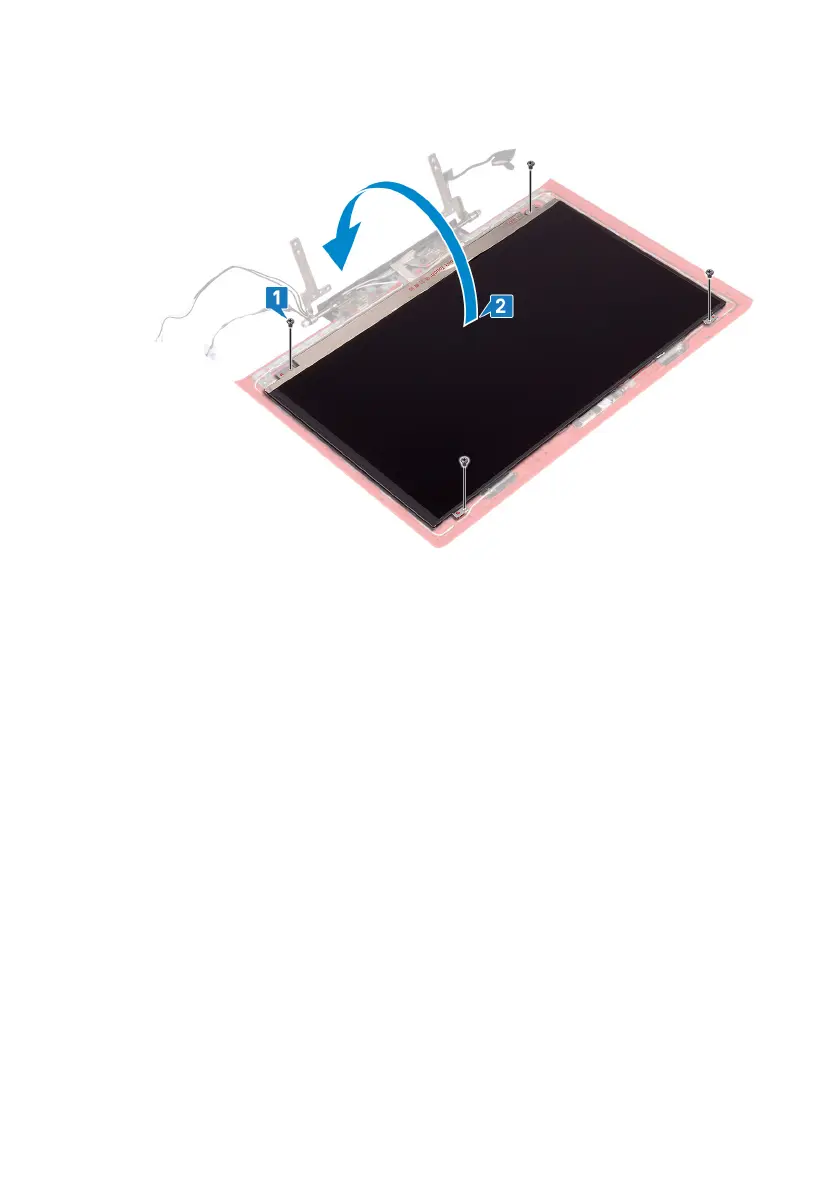

2 Gently lift the display panel and turn it over.

3 Peel o the tape that secures the display cable to the display panel.

4 Open the latch and disconnect the display cable from the display panel.

109
