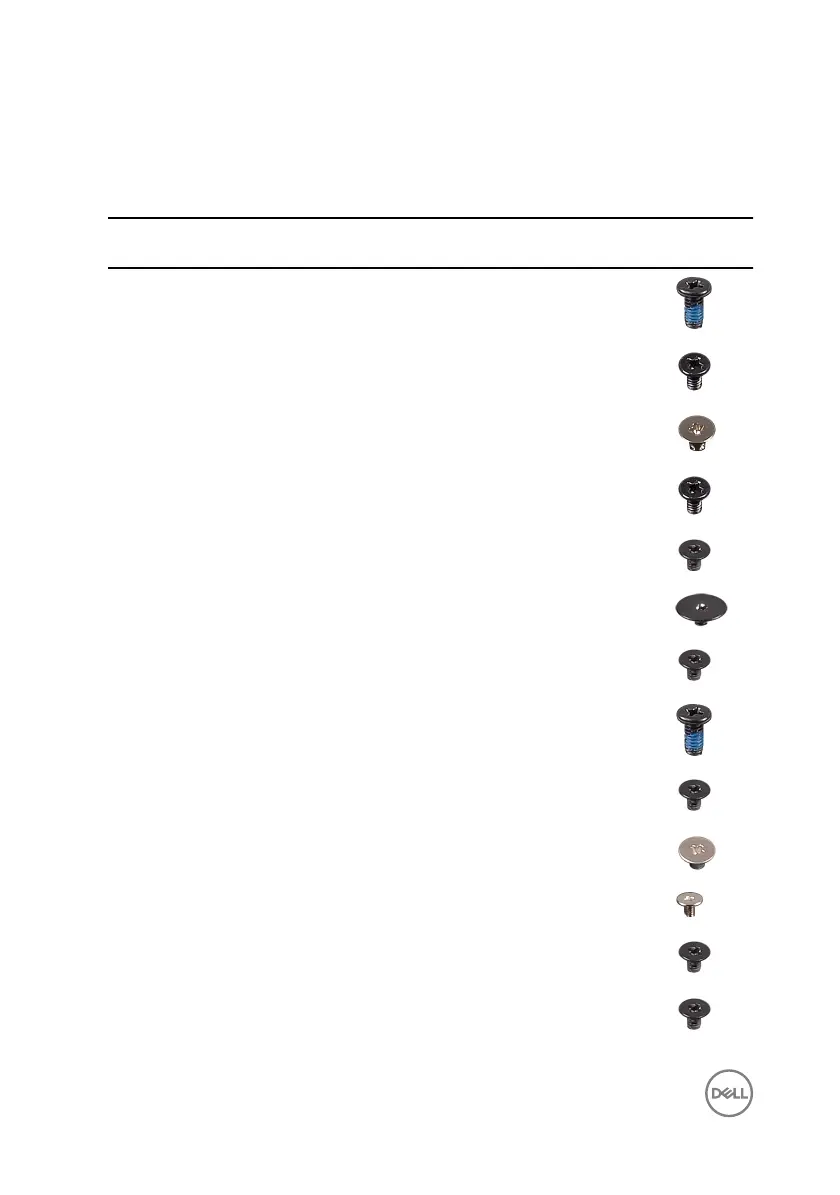

Screw list
Table 1. Screw list
Component Secured to Screw type Quantity Screw
Battery Computer base M2.5x6 3
Solid-state drive Computer base M3x3 1
Hard-drive assembly Computer base M2.5x3+3 4
Hard-drive bracket Hard drive M3x3 4
Wireless card Wireless card bracket
and system board
M2x3 1
Rear cover Computer base M2x2 4
Display-cable bracket Computer base M2x3 1
Computer base Palm-rest assembly M2.5x6 19
Computer base Palm-rest assembly M2x3 4
Touchpad Palm-rest assembly M2x2 4
Fans Heat sink M2x1.4 5
Fans System board M2x3 4
14
