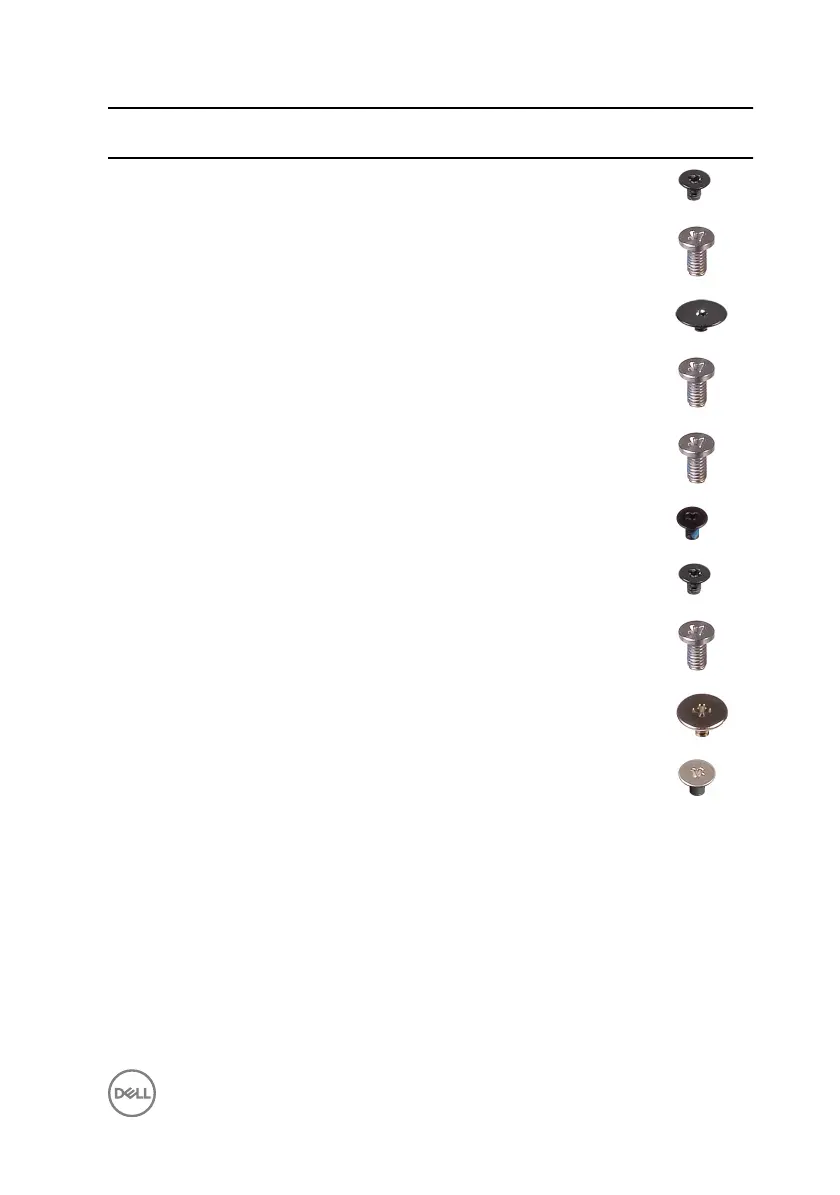

Component Secured to Screw type Quantity Screw
Status-light board Computer base M2x3 1
Power-button board Palm-rest assembly M2x3 2
Power-adapter port
bracket
Computer base M2.5x5 2
Fingerprint-reader
board bracket
Palm-rest assembly M2x2 2
USB Type-C port
bracket
System board M2.5x5 2
System board Computer base M2.5x5 3
Keyboard bracket Palm-rest assembly M1.6x2.2 30
Heat-sink assembly System board M2x3 6
Display assembly Palm-rest assembly
M2.5x5
2
Display hinges Display back-cover
and antenna assembly
M2.5x2.5 8
Display panel Display back-cover
and antenna assembly
M2x2.5 4
