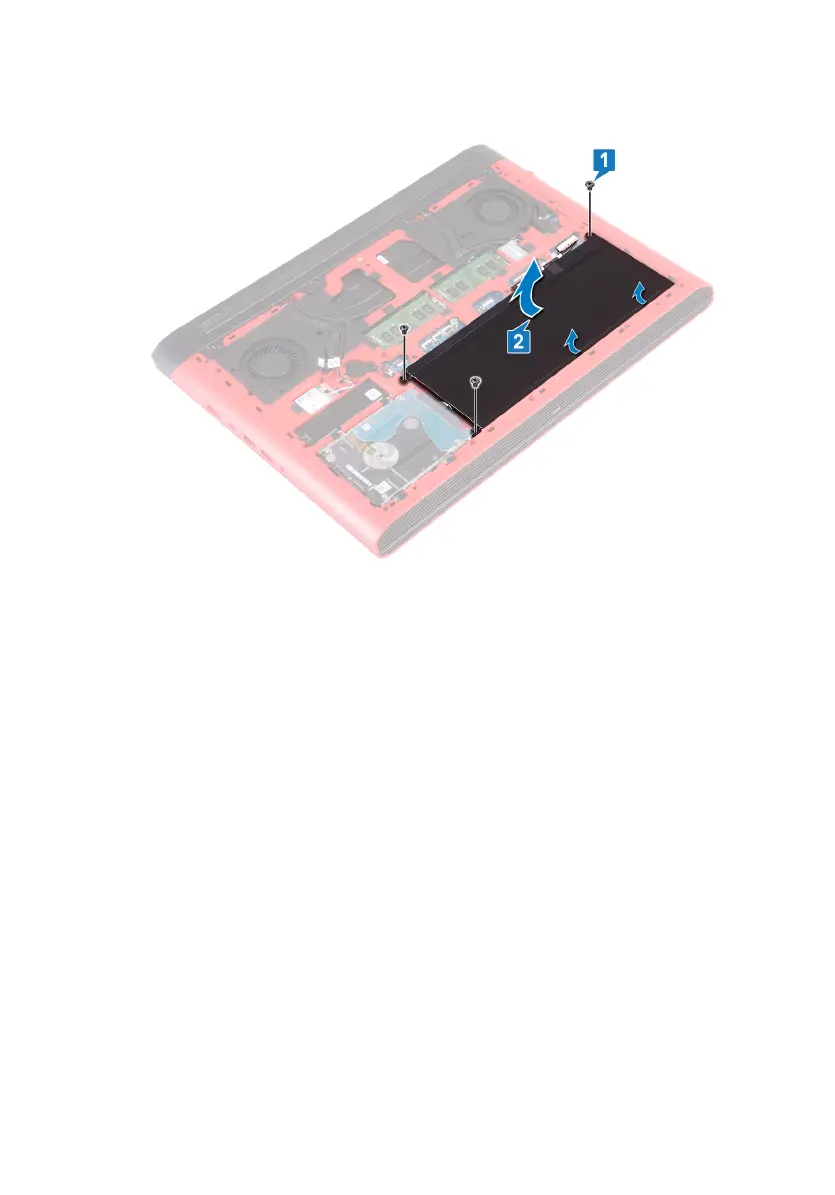

2 Lift the battery at an angle o the computer base.

3 Turn the computer over, open the display, and press and hold the power button

for ve seconds to ground the system board.
