Removing the speakers
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
3 Remove the rear cover.
4 Follow the procedure from step 1 to step 18 in Removing the computer base.

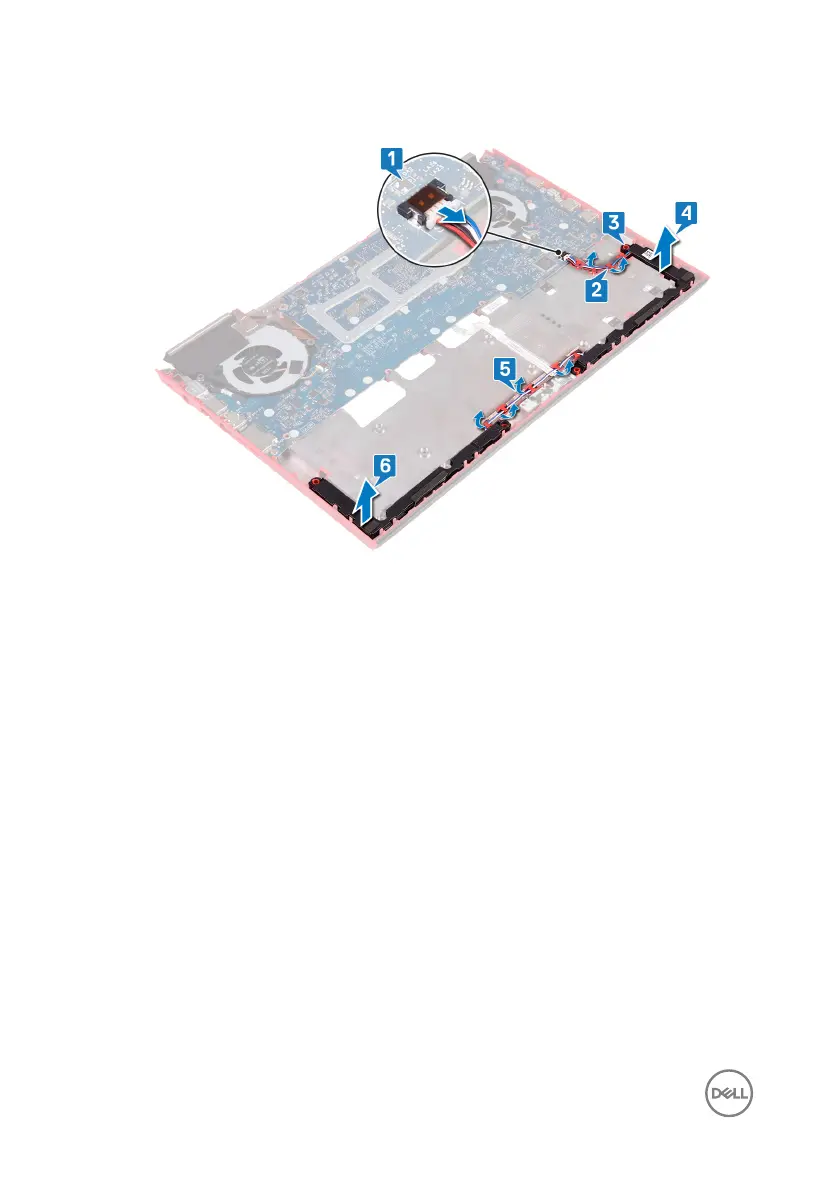

Procedure
1 Disconnect the speaker cable from the system board.
2 Note the routing of the speaker cable and remove the speaker cable from the
routing guides on the computer base.
3 Note the position of the rubber grommets before lifting the speakers.
4 Lift the right speaker o the computer base.
5 Note the routing of the speaker cable and remove the speaker cable from the
routing guides on the computer base.
56
