Procedure

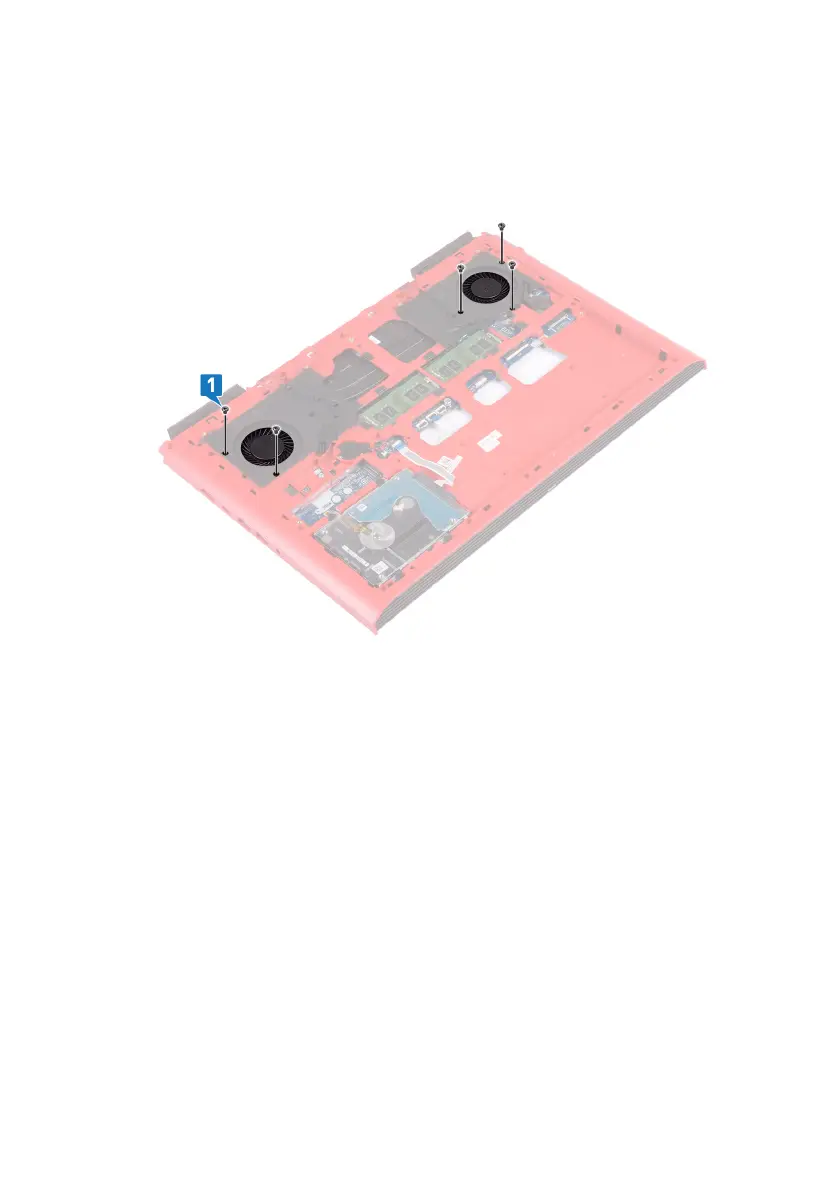

1 Remove the ve screws (M2x1.4) that secure the fans to the heat sink.

2 Turn the computer base over.

3 Disconnect the left-fan cable and right-fan cable from the system board.

4 Peel the tapes that secure the fans to the heat sink.
