Removing the ngerprint-reader
board
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
3 Remove the rear cover.
4 Remove the computer base.
5 Remove the power-button board.

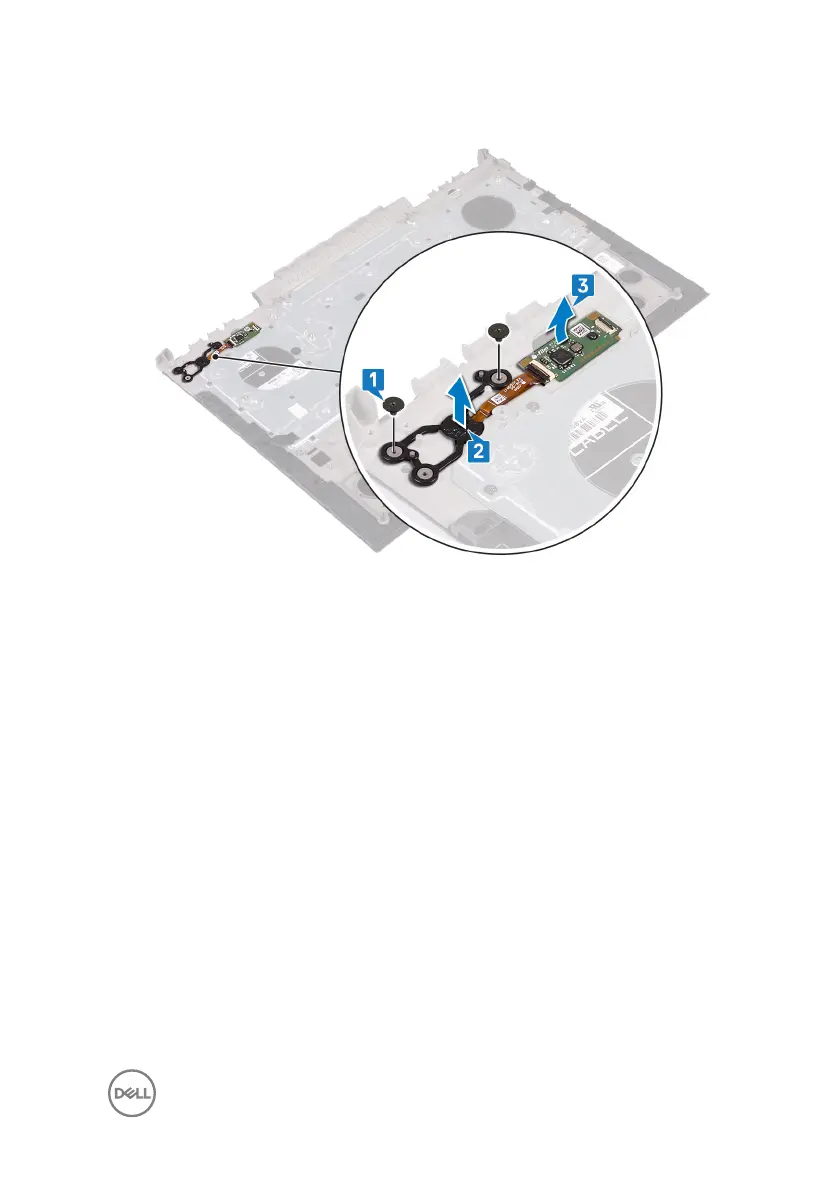

Procedure
1 Remove the two screws (M2x2) that secure the ngerprint-reader board
bracket to the palm-rest assembly.
2 Lift the ngerprint-reader board bracket o the palm-rest assembly.
81
