Dell P72F - Page 96

To Next Page

To Previous Page

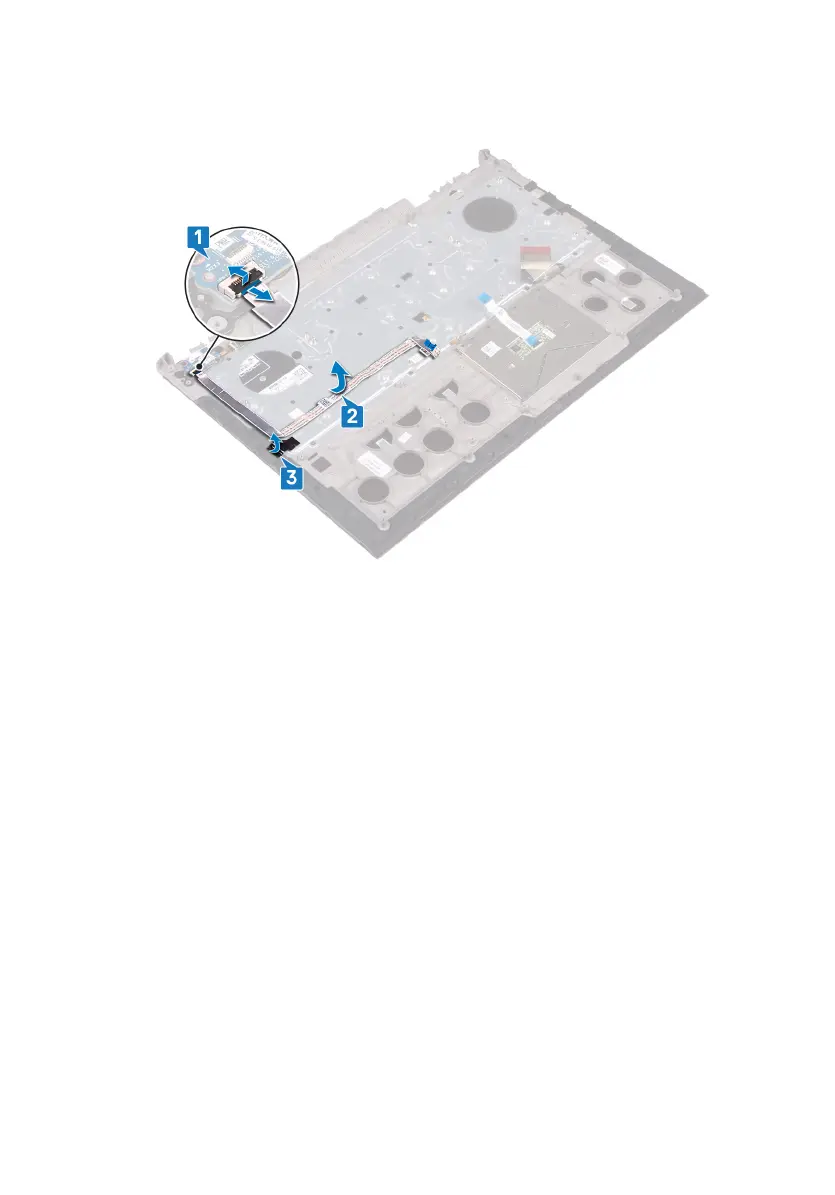

3 Peel the tape that secures the keyboard bracket to the palm-rest assembly.

4 Remove the 30 screws (M1.6x2.2) that secure the keyboard bracket to the

palm-rest assembly.
