Steps
1. Locate the display panel on the display back cover assembly.
2. Remove the four (M2.5x3.5) screws that secure the display panel to the display assembly.
3. Lift to turn over the display panel to access the display cable.
4. Peel the conductive tape on the display cable connector.
5. Lift the latch and disconnect the display cable from the connector on the display panel.
NOTE:
Do not pull and release the Stretch (SR) Tapes from the display panel. There is no need to separate the brackets
from the display panel.
Installing the display panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

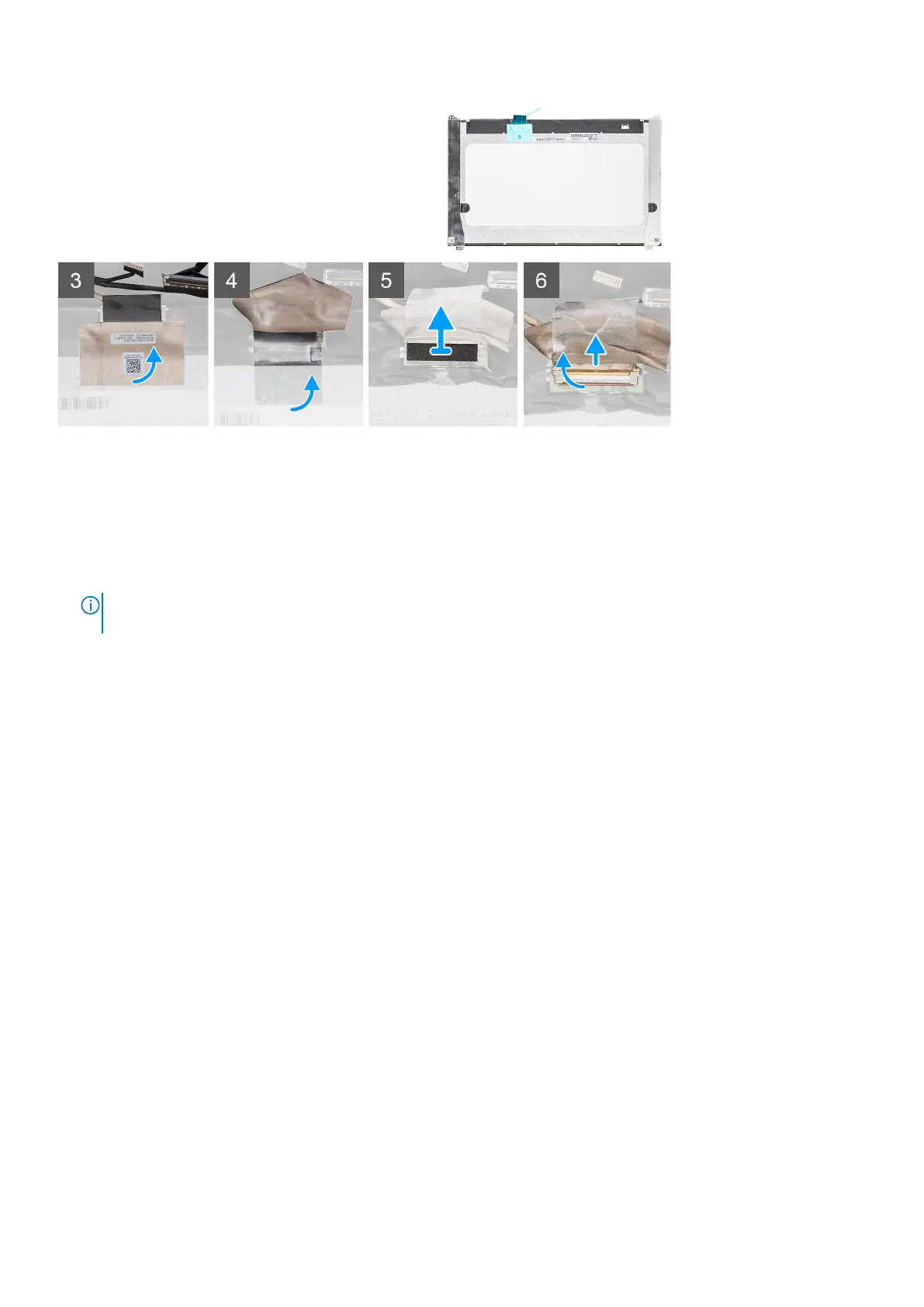

The figure indicates the location of the display panel and provides a visual representation of the installation procedure.
90
Disassembly and reassembly
