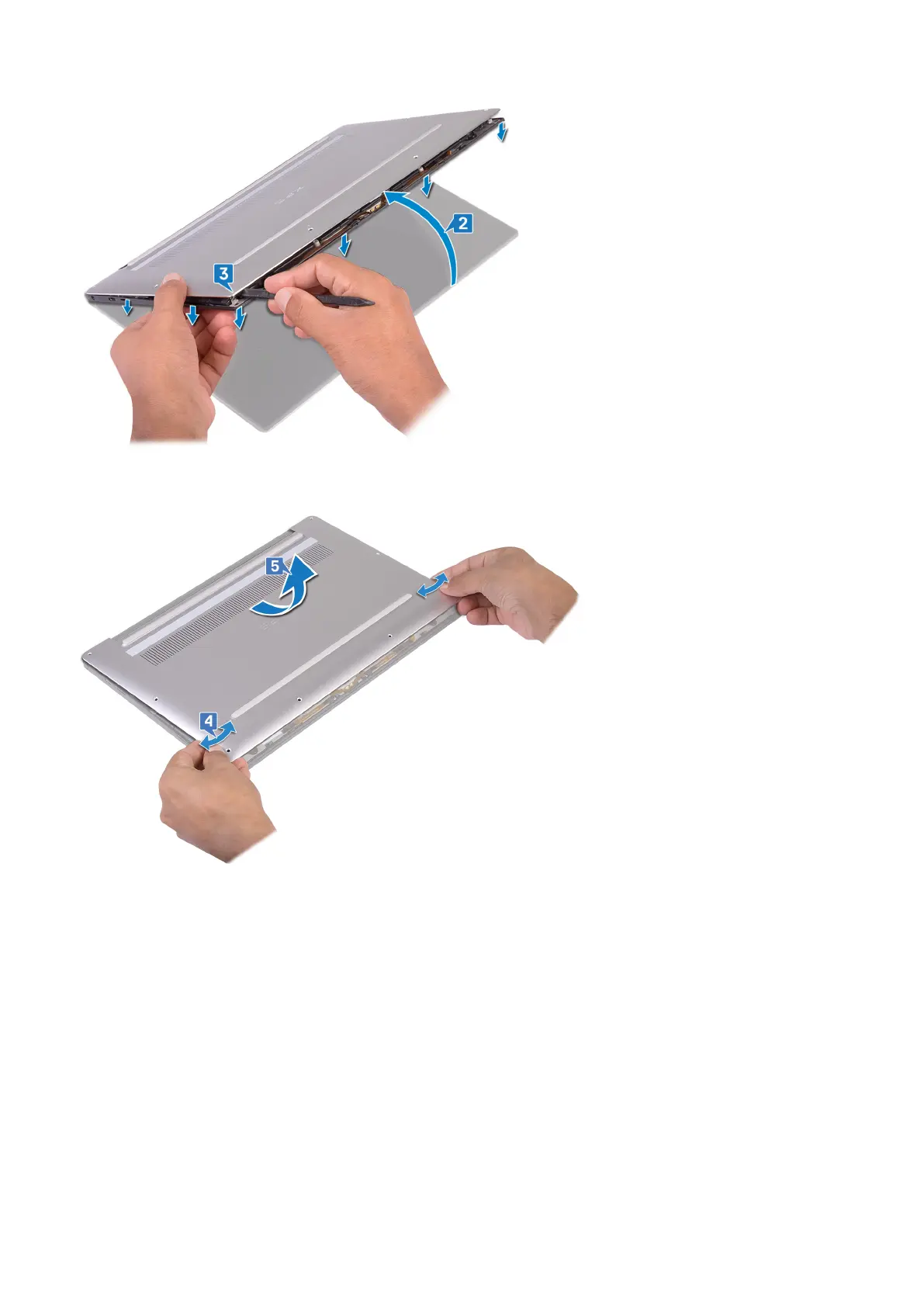

4. Moving the base cover from left to right, release the clips securing the base cover to the palm-rest assembly.

5. Lift the base cover from the palm-rest assembly.

16 Removing the base cover
